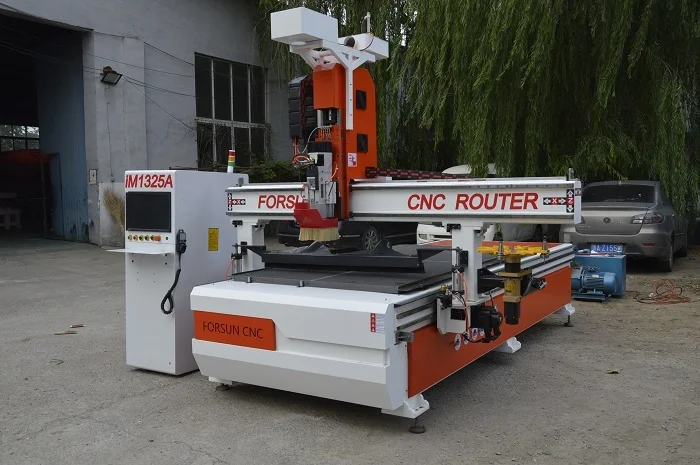

1325 woodworking cnc router machine furniture industry

Features

What is the standard configuration of ATC CNC Router?

Ø Effective working area: 2000*4000mm*200mm

Ø 9kw ATC air cooling spindle

Ø 11kw Taiwan Delta inverter

Ø Siemens controller system

Ø Siemens servo motor and driver

Ø Line ATC with 10 positions

Ø Vacuum & T-slot working table

Ø Taiwan TBI Ball Screw,Helical Rack and Pinion

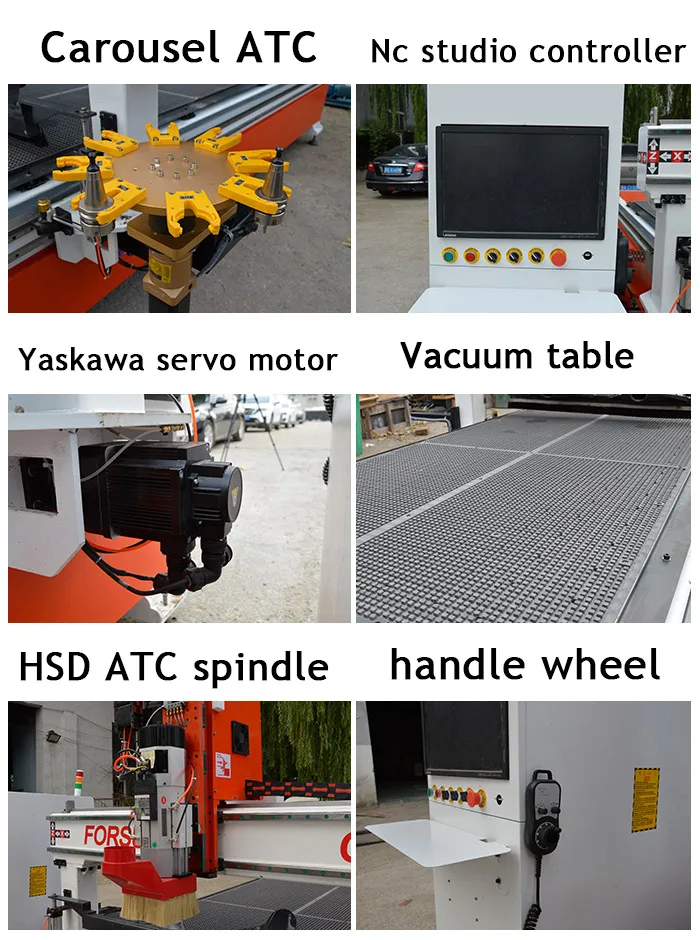

Advantages

What is the advantages of our cnc wood router?

Spindle	ATC Air Cooling Spindle Spindle speed: 0-24000RPM.
Inverter	Taiwan Delta Inverter It can output 150% of rated torque at zero speed, and it can have “point to point” and relative distance control functions for position control.
Motor	Leadshine servo motor. high working efficiency and stable running promised
Control system	NC Studio PC Controller Operate machine by computer,is easy to check each path of the work,easy to control
Working table	T-slot and Vacuum Table Rigid vacuum table with grids and T-slots maximizes the vacuum hold-down and also enables you to clamp the workpiece in place.
Tool magazine	Line ATC with 10 positions Easy to operate and maintence

What is the technical Data of CNC Woodworking Machine?

Technical Data
NO	Description	Parameter
1	Positioning Accuracy	±0.03/300mm
2	Max. Rapid Travel Rate	70000mm/min
3	Max. Working Speed	35000mm/min
4	Spindle Speed	0-24000RPM
5	Command Language	G Code
6	Flash Memory	512M
7	Collet	ER32
8	X,Y Resolution	<0.03mm
9	Running Environment Temperature	0 - 45 Centigrade
10	Relative Humidity	30% - 75%
11	Packing Size	402022802100mm
12	N.W.	2000KG
13	G.W.	2200KG

Benefits

1. Furniture industries: cabinet doors, wooden doors, solid woods, plates, antique furniture, doors, windows, desks and chairs.

2. Decoration industries: screens, wave boards, large-size wall hangings, advertising boards and sign making.

3. Arts & Crafts industries: Engrave on artificial stones, woods, bamboos, marbles, organic boards, double-color boards and so on for achieveing effects of exquisite patterns and characters.
4. Processing material: engraving, milling and cutting processing for acrylic, PVC, density boards,

artificial stones, organic glass, plastics and soft metal sheets such as copper and aluminum
