Name: 3020/2030Z-D300 Engraving Machine cnc Router PCB 4 Axis Milling Carving
SKU: 205933415011181
Price: 5064.99 AUD
Availability: InStock

3020/2030Z-D300 Engraving Machine cnc Router PCB 4 Axis Milling Carving

(No reviews yet) Write a Review

SKU:

205933415011181

Shipping:

$298.59 (Fixed Shipping Cost)

Description

Description

Product Description

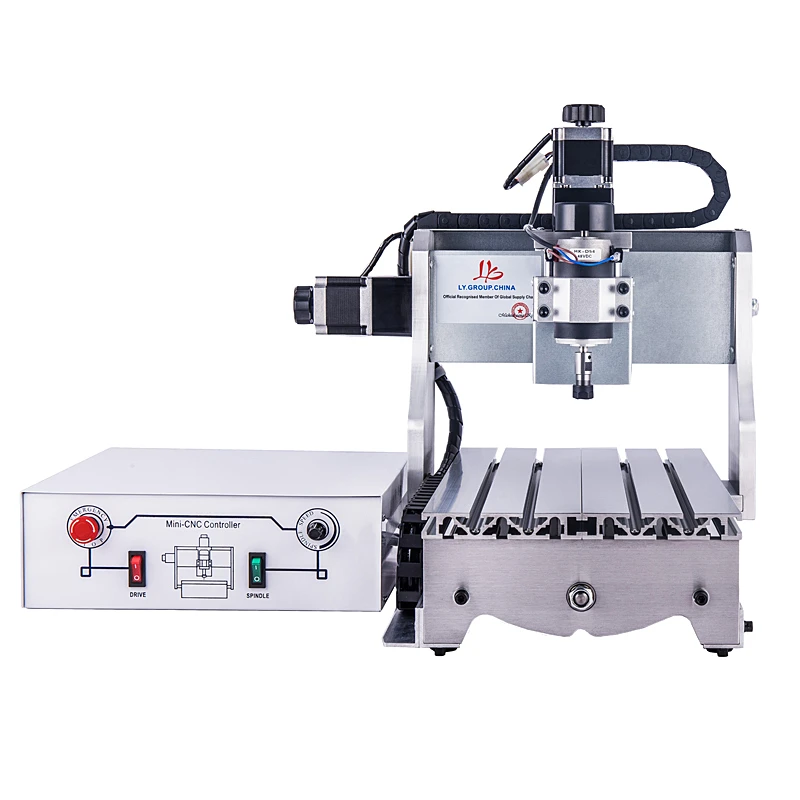

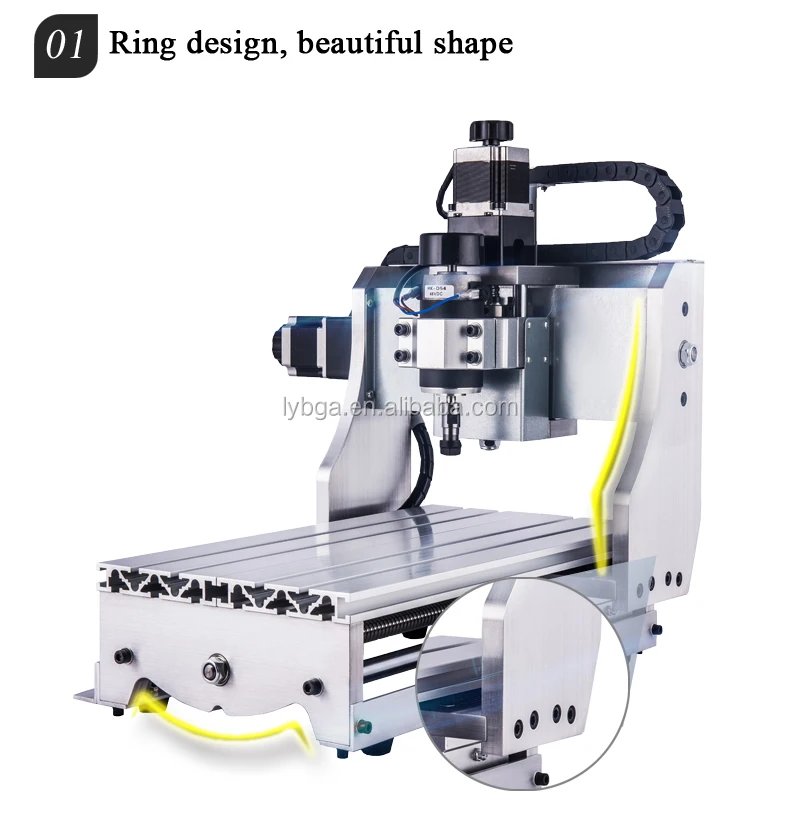

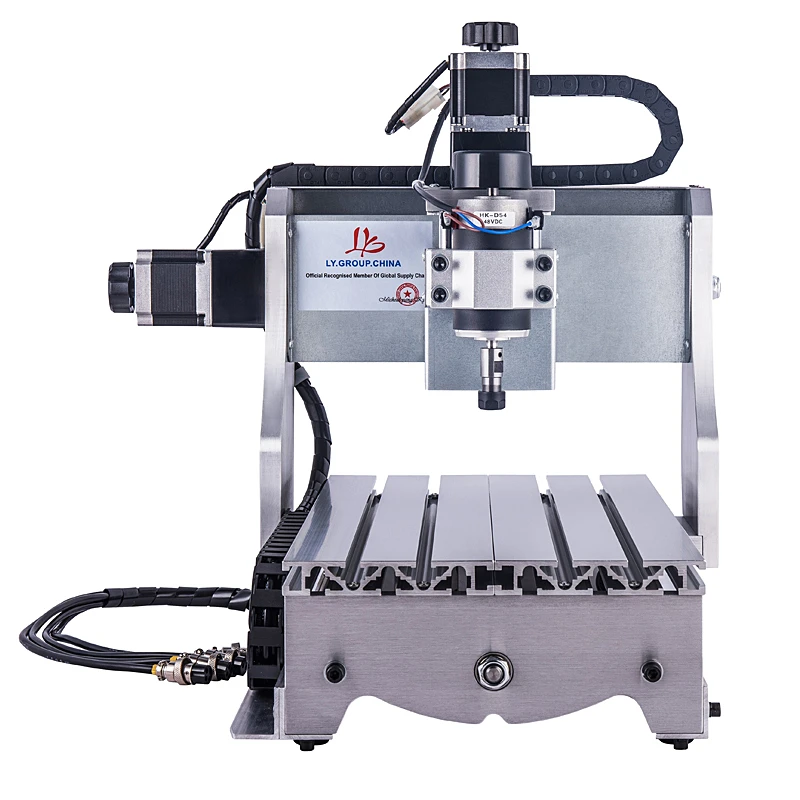

Mini CNC Router Engraver 3020 300W/ Milling Machine

Introduction

The CNC router is suitble for Industry, Technology Research, Advertising Design, Arts Creation, Teaching, Student Project and Hobby Purposes.

The cnc router is designedfor large area engraving work such as Industrial or Hobby Prototype Building, Building Model Making, PCB, Advertising Signs, Artwork, Crafts, Aircraft Models, RC Model parts, etc. So, you can do engraving work at office or home.

Model and Technical Parameters

MODEL	3020
Attribute	Z-D300 3axis	Z-D300 4axis
Axis	3axis	4axis

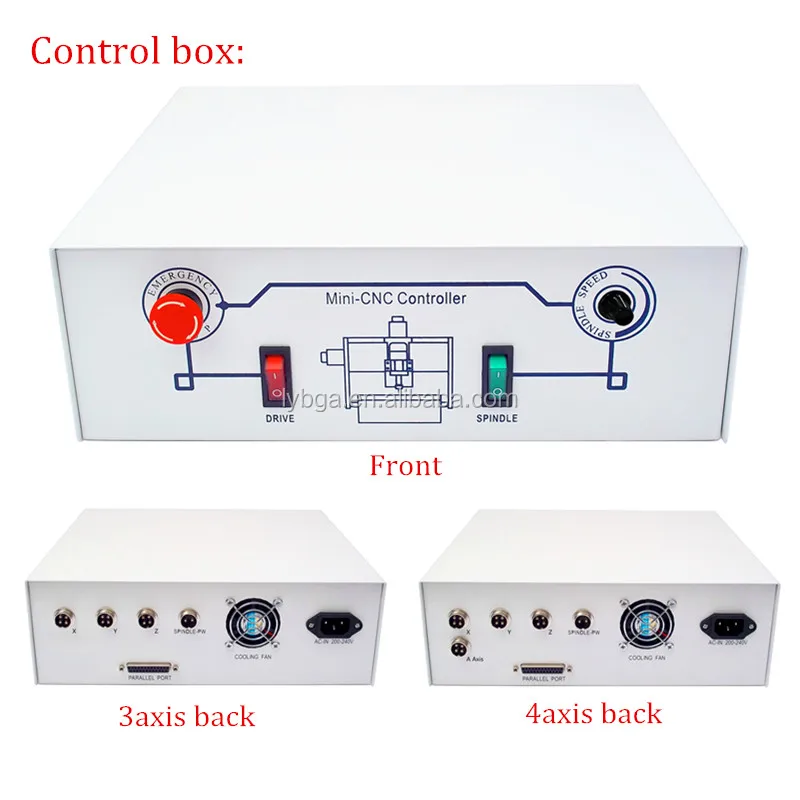

Interface	LPT port	LPT port
Limit switch	No	No
Toolauto-checking	No	No
Spindle Motor:	300W	300W

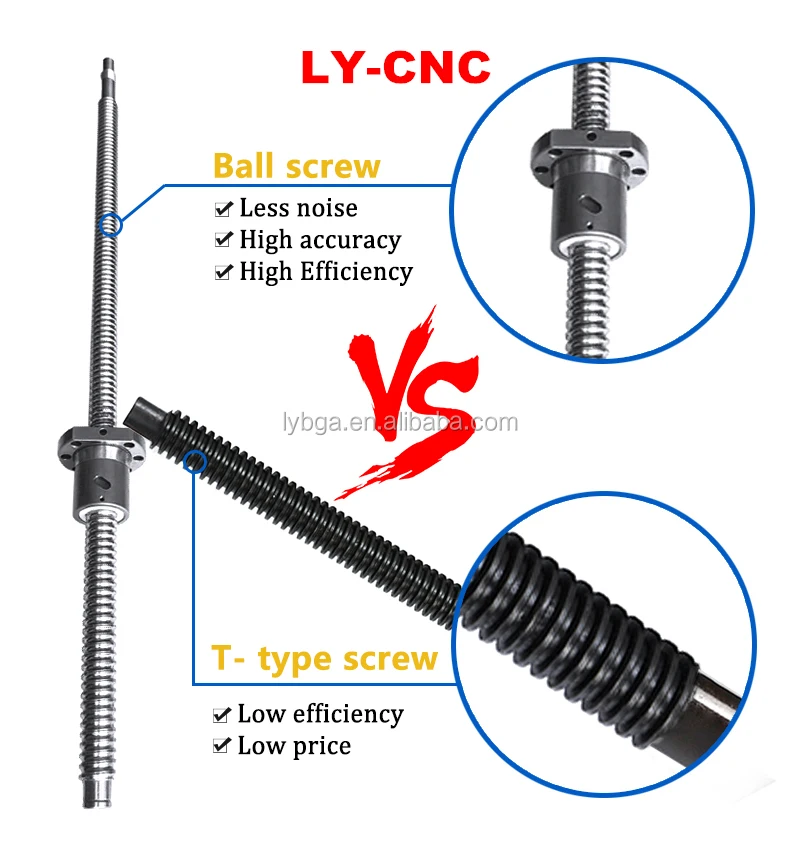

Type of screw	1605 Ball screw	1605 Ball screw
Weigh	26KG	30KG
Machine Dimensions:	560X450X450mm

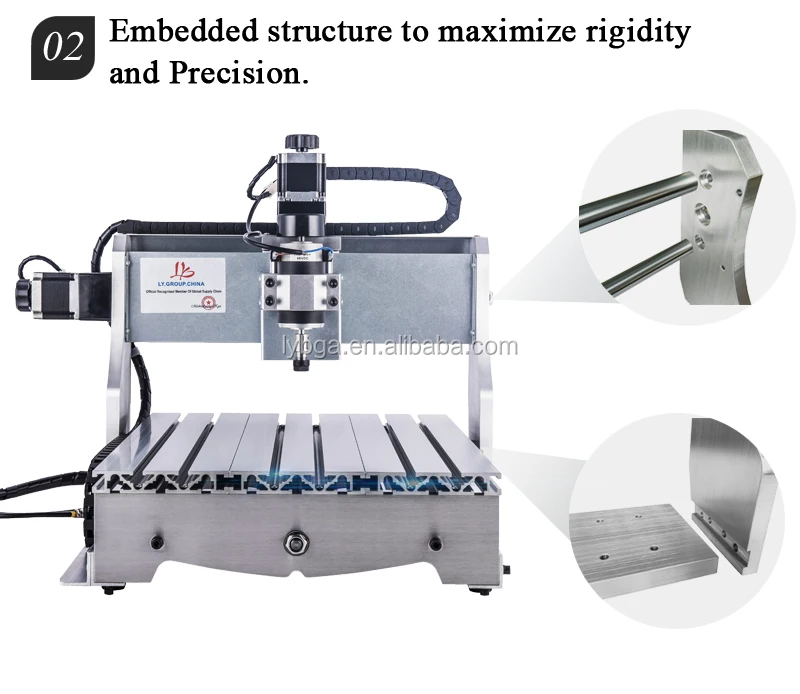

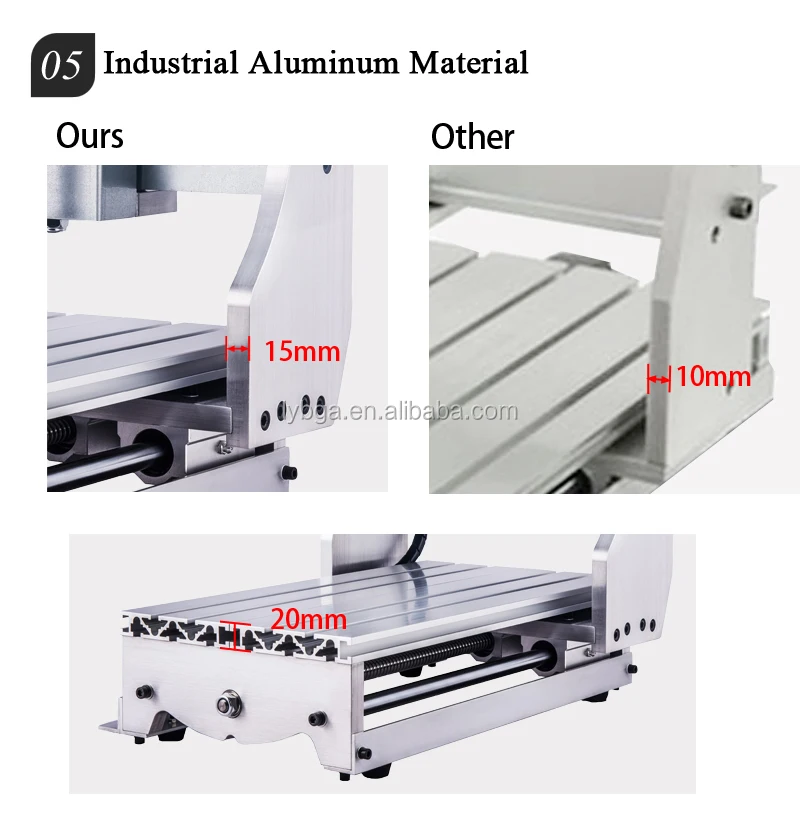

Rack material:	6061 and 6063 Hard aluminum alloy (The unique and dedicated mold extrusion profiles, Let counterfeiters dwarfs.)
Engraving area:	300X200mm
Z-Axis Stroke:	60mm, Engraving depth depends on the length of the tool edge
Acceptable material thickness:	≤60mm
Rail type:	Chromeplate shaft+Linear Bearings,Surface hardening 61HRC

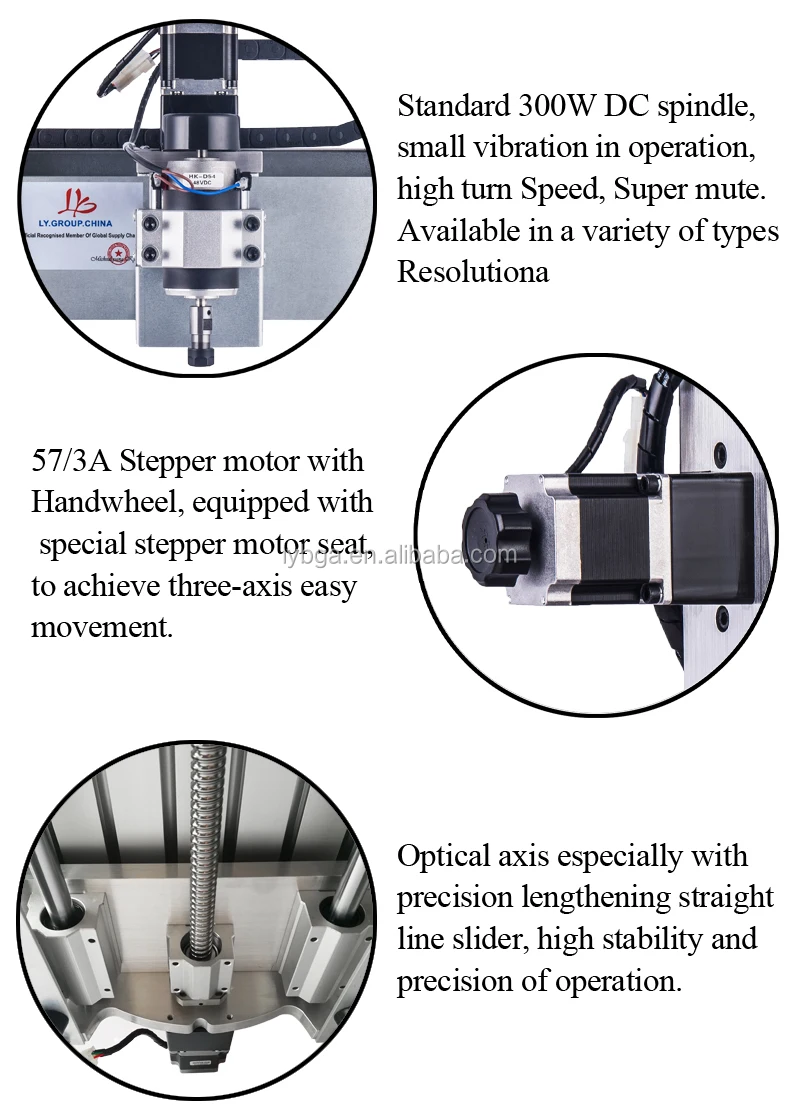

Spindle motor:	300W/12000r/min(Very small noise)
Collet type:	ER11,1/8"(3.175mm) Collet

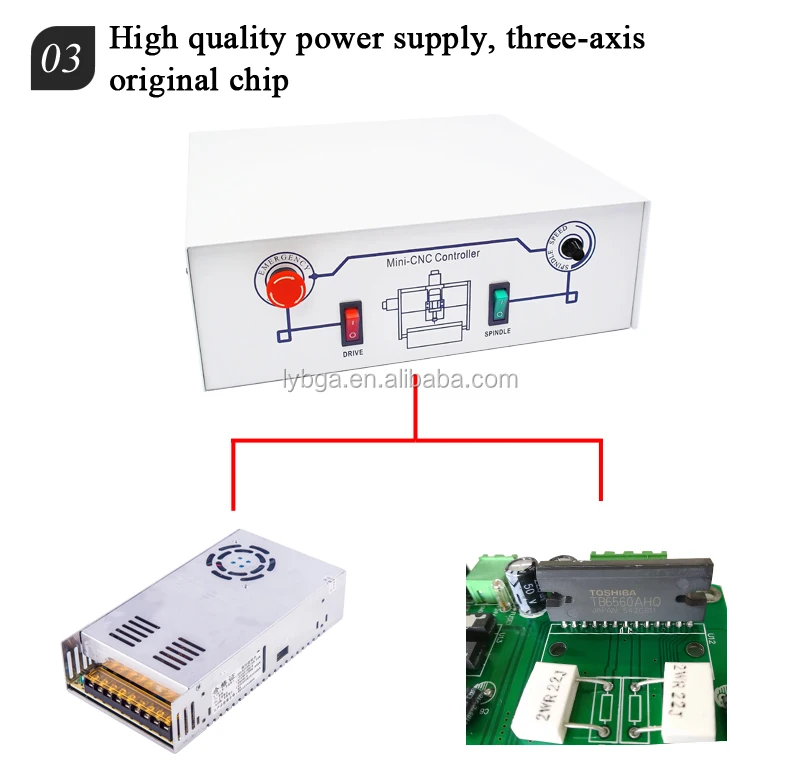

Stepper motor and drive:	two-phase hybrid stepping motor3A/PHASE,150N.cm, 8 segments drive.
Maximum operating speed:	4000mm/min (Engraving speed : 300-3000mm/min)
Repeat positioning Accuracy:	≤0.03mm
Software Compatability:	Mach3/Emc2/Kcam, (Type3,Wentai, ArtCAM,coppercam)
Command code:	G code/.nc/.ncc/.tab/.txt

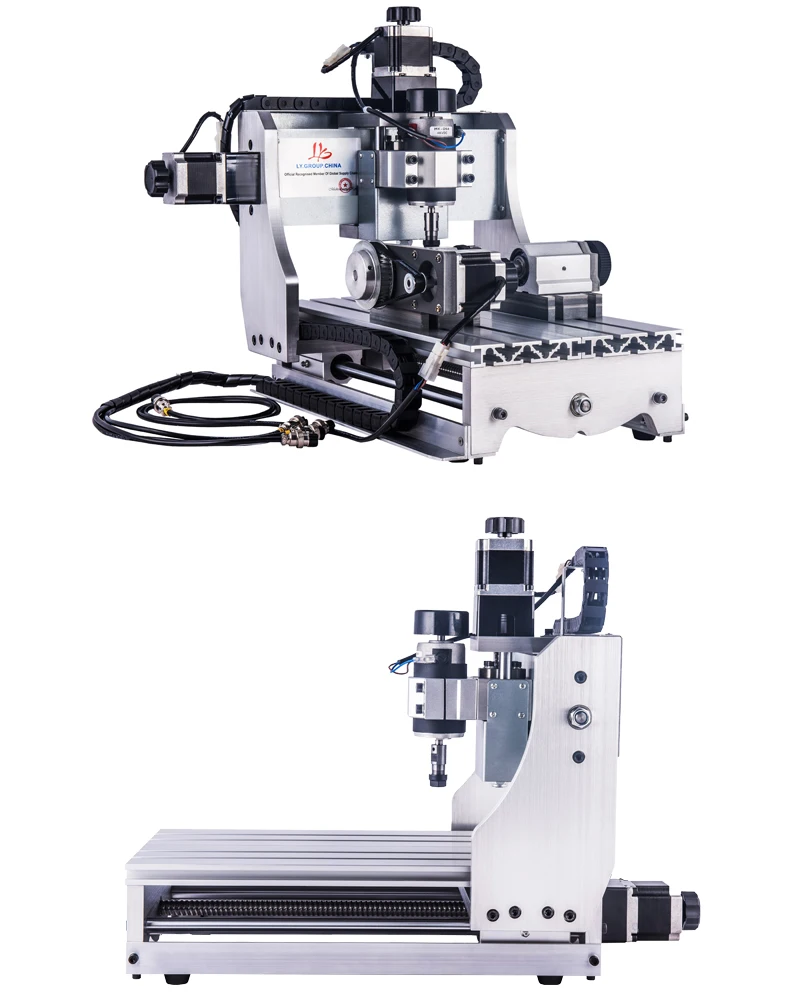

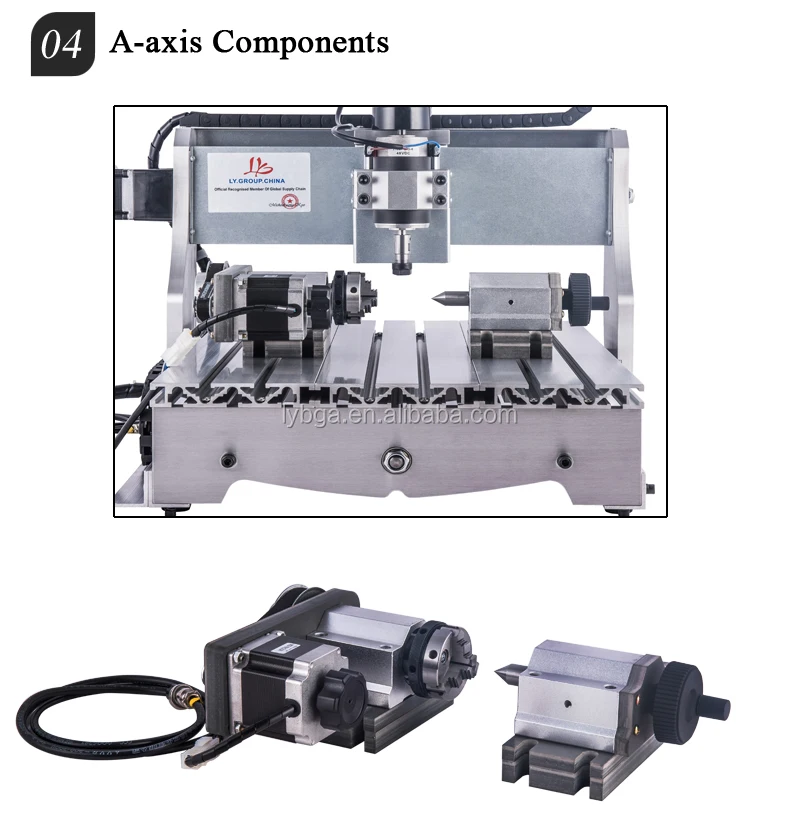

Rotation Axis (4^th Axis) Description:	Chuck Size: 50mm self-centering chuck Center height: H = 51mm Clamping diameter: 50mm or less Deceleration mode: synchronous wheel / belt Deceleration ratio: 4:1 Stepper motor:NEW 57 type / 3A Stepper Drive: T65-axis drive Positioning accuracy: 0.075 ° Weight: 4kg
