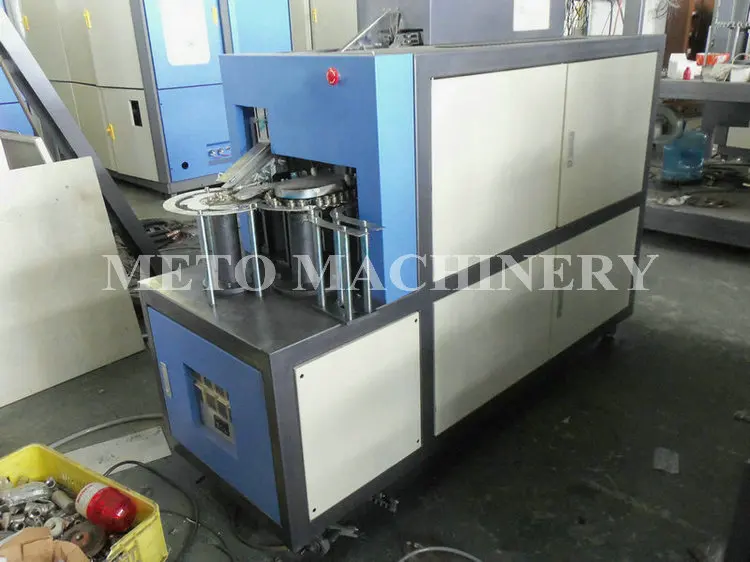

4 cavity semi automatic PET water bottle blow mold machine
- SKU:
- 206570593011181
- Shipping:
- Free Shipping
Description
Product Application
4 cavity semi automatic PET water bottle blow mold machine with preform feeder 330ml 500ml 750ml 1500ml
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc. Beverage bottle, cosmetic bottle, medicine bottle, jar etc.
Main Features
MT-C2L-4T Semi-Automatic Blowing Machine, 4 cavity, blowing the bottle max to 1.5L, used for the series kinds of PET-PP bottle, such as the edible oil bottle，medicinal bottle, drinking bottle，cosmetic jars, Wild-mouth bottle and so on.
1、Adopting advanced MICOM control system, stable performance；
2、Adopting infrared tubes heating, with strong penetration, bottle preform rotation heated,
the rail revolution, heating even, fast and reliable；
3、The heating tube, heating area width and height can be adjusted to suit for different structure of the bottle preform, also with the automatic vent heat temperature device, in order to ensure the channel with constant temperature；
- Each step had safety lock device, when a process failure, the program will switch to the safety state automatically；
- The action driven by cylinder, instead the oil pump, with the advantage no pollution,lower noise；
