800-1000 kg per hour floating fish feed pellet extruder production line
- SKU:
- 205763480011181
- Shipping:
- $17,499.16 (Fixed Shipping Cost)
Description
1. Brief Introduction:
The fishing float making machinery and inflating production machine line can produce both floating and sinking feed pellets for fish, shrimp, crab, etc.
According to different fish varieties, the feed type will be various. And different ages fish require different sizes feed pellet. Our twin screw extruders can produce floating and sinking feed size range 1.2-12 mm by adjusting temperature, moisture, formulation and changing moulds.
Our fishing float making machinery also can be used for dry pet food production, such as dog food, cat food, bird feed, monkey food, etc.
2. Material:Stainless steel food grade
3. Voltage:
Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers'local voltage according to different countries.
4. Machines Materials:
All the machines are made by stainless steel.
5. Technical Parameter:
|
Model
|
HM70
|
HM85
|
HM95
|
|
Installed Power
|
90KW
|
120KW
|
180KW
|
|
Power Consumption
|
50KW
|
90KW
|
120KW
|
|
Production Capacity
|
200-250Kg/h
|
800-1000Kg/h
|
1500-2000Kg/h
|
|
Dimension
|
24000*1500*2200mm
|
30000*3500*2300mm
|
45000*2500*2600mm
|

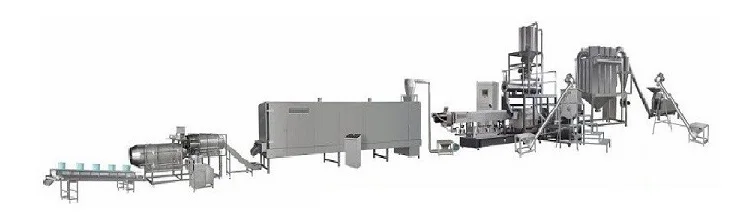

6. Flow chart:
Mixer--- Screw conveyor--- Twin-screw extruder ---Hoister --- Dryer ---Flavoring line---Cooling
7. Raw Material:
Fish Meal
Corn Flour
Soya Bean
This production line can produce all kinds of animal food,such as dog food,cat food,fish food,bird food and so on.
Mixer
Vertical stirrer are able to perform even mixture for large volume of materials in short mixing time by utilizing the paddles rotation to gather the material from the bottom of dump center to the top, shed the material flow back to the bottom and complete the mixing in short period of time

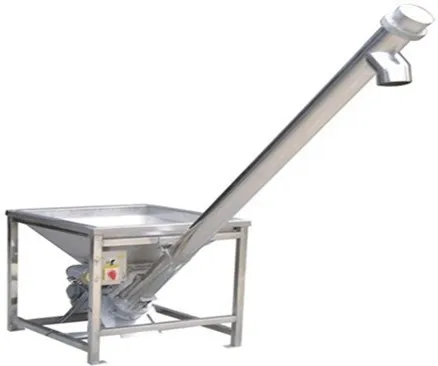

Screw Conveyor
It can hoisting the mixed material from the mixer into the extruder machine

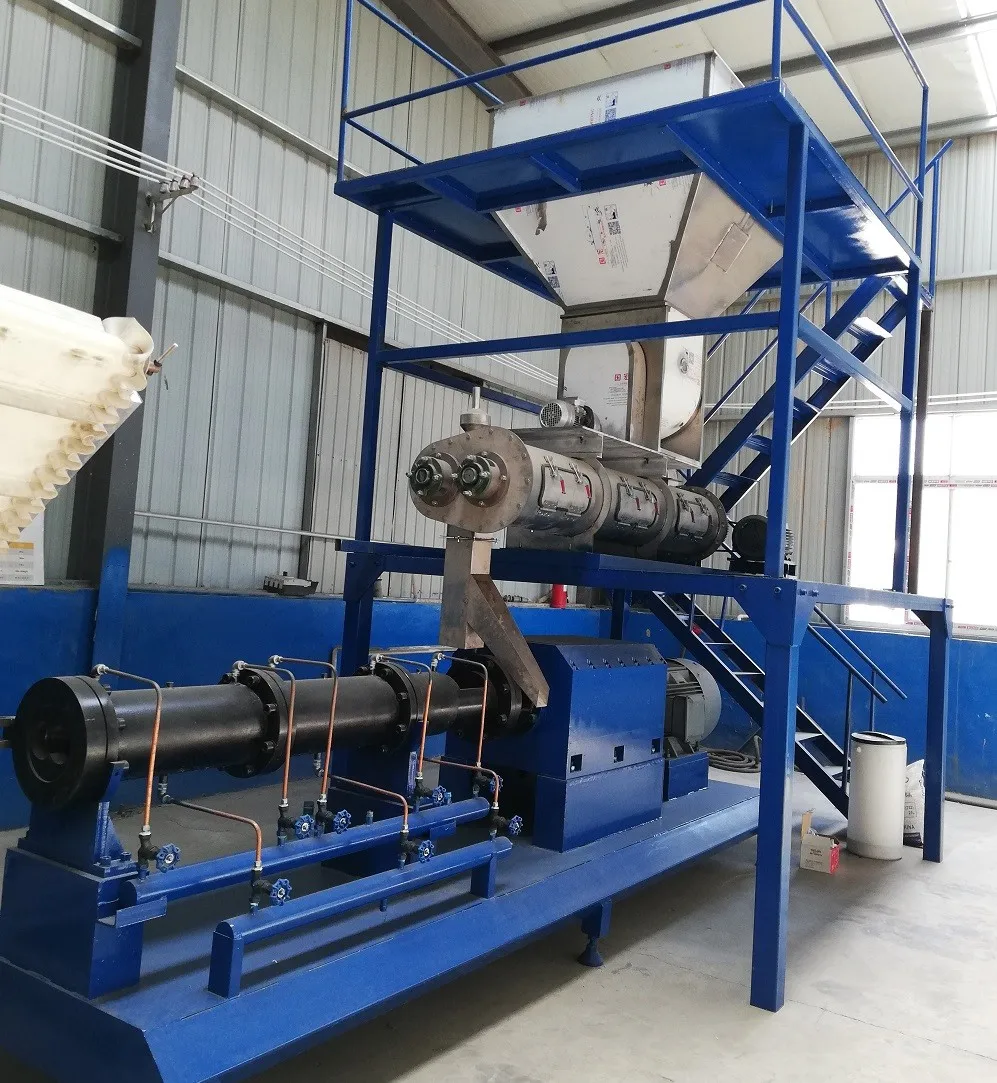

Extruder
Extruding the mixture into different shapes of dog food,fish feed based on different parameters
(INCLUDING: storage bin, Double Axis Conditioner for pre cooked, Support Platform, Center Cutting System 2 Free Moulds)

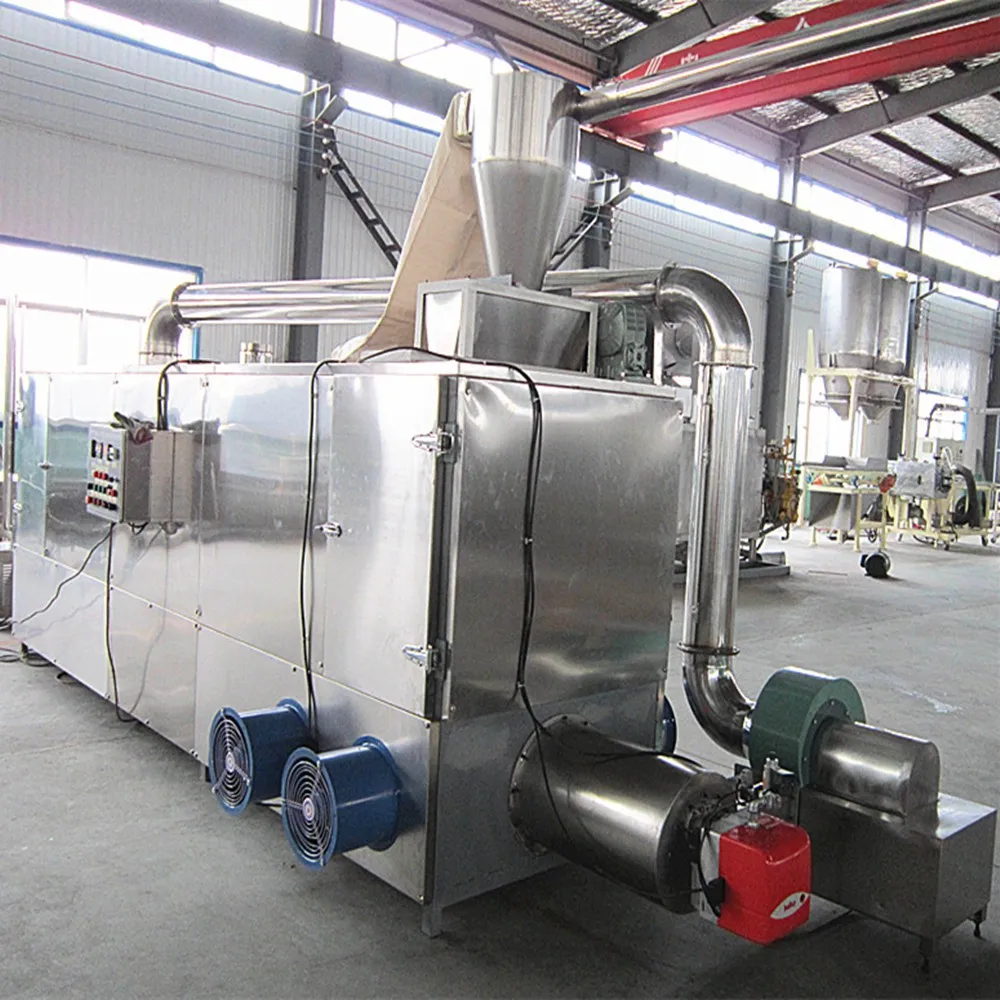

Steam Dryer
This kind of dryer has a wide range of application. It can dry all shapes of puffing food, including strip, lump, granular materials etc, as well as other types of materials.

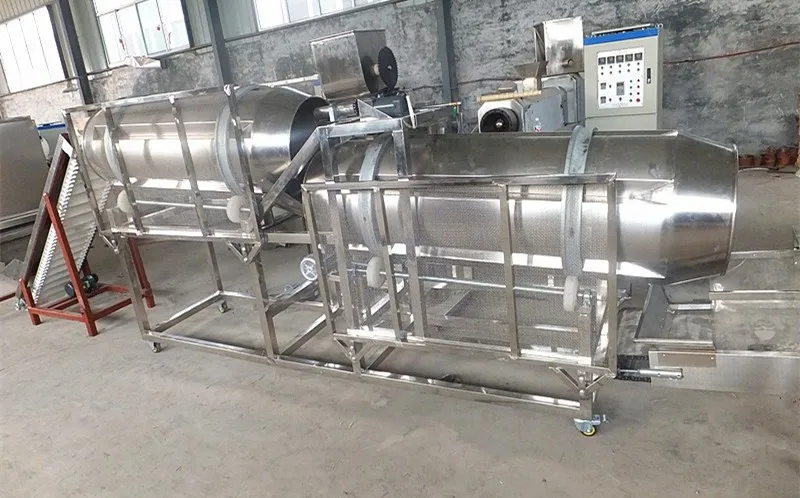

Spice-spraying machine
To make food overturning inside the coating drum,
to catch more oil and flavors. The materials, flavoring and oil are stirred and mixed in the roller until well distributed.

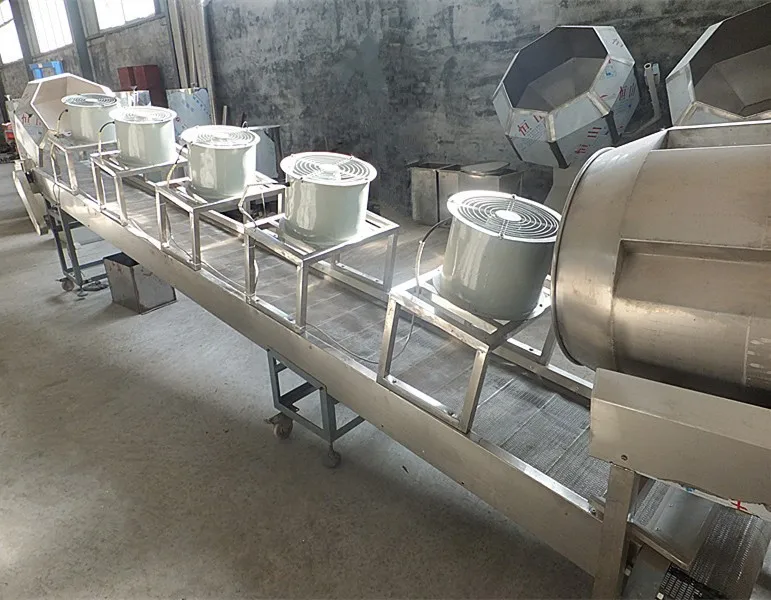

Cooling Machine
Mainly applicable to a varitey of granular material cooling.
Adopted countercurrent cooling principle, full cooling and unformity.
