automatic pet bottle machine factory 100Ml to 1.8L plastic pet bottle
- SKU:
- 206570620011181
- Shipping:
- $564.19 (Fixed Shipping Cost)
Description
Product Application
LONES MACHINERY was established in 2014. It is a professional manufacturer and exporter
specializing in the design, manufacture and sales of semi automatic pet blow molding machine, full automatic pet bottle making machine and pet bottle molds; and provides PET One-stop solutions for a series of products such as PET preform moulds and plastic cap molds; in order to meet the needs of customers in different countries and regions, we continue to update processing equipment, improve processing accuracy and optimize machine design; the factory runs synchronously with production and management, greatly improves the timeliness of manufacturing equipment; all our equipment meets international quality standards and is greatly appreciated all over the world.
|

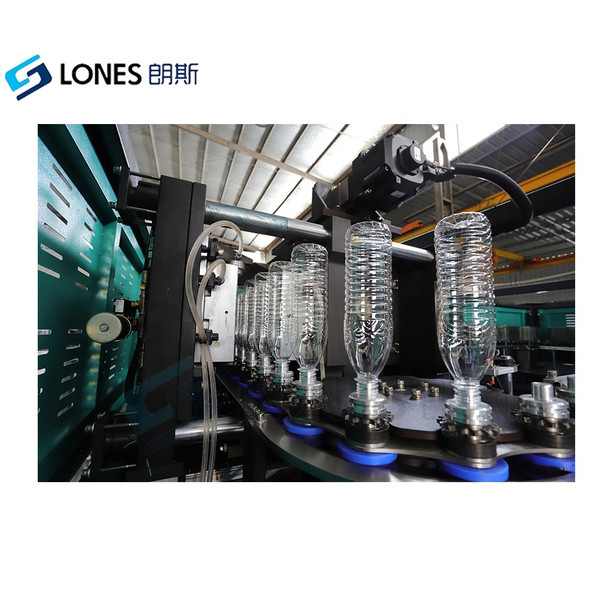

LS-A6 FULL AUTOMATIC PET BLOW MOULDING MACHINE
|
||||||
|
THEORETICAL OUTPUT
|
7000BPH for 500ml bottle
|
|||||
|
MAX. CONTAINER VOLUME
|
2L
|
|||||
|
MAX.NECK DIAMETER
|
45MM
|
|||||
|
MAX.CONTAINER DIAMETER
|
100MM
|
|||||
|
MAX.CONTAINER HEIGHT
|
340MM
|
|||||
|
NUMBER OF CAVITY
|
6CAVITY
|
|||||
|
TOTAL POWER
|
55KW
|
|||||
|
USE POWER
|
40KW
|
|||||
|
WORKING PRESSURE
|
1.0MPA
|
|||||
|
BLOWING PRESSURE
|
≤3.0MPA
|
|||||
|
MACHINE WEIGHT
|
5000KGS
|
|||||
|
MACHINE SIZE
|
5.3x2.5x2.1m / 1.2x2.3x2.8m
|
|||||
Main Features

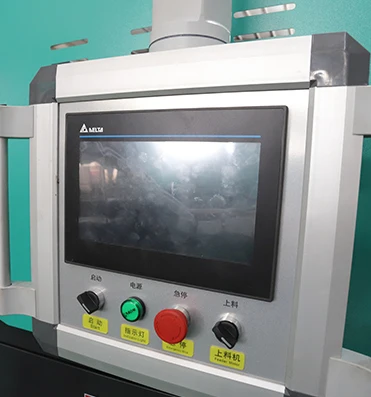

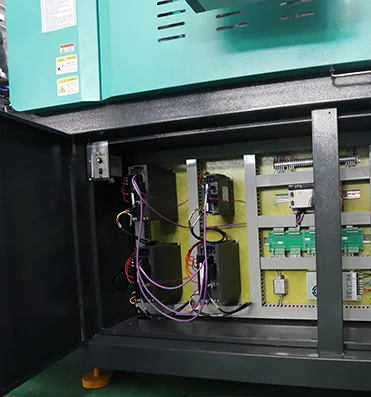

2.Adopting world famous brand micro PLC controller，the operating language can be customized

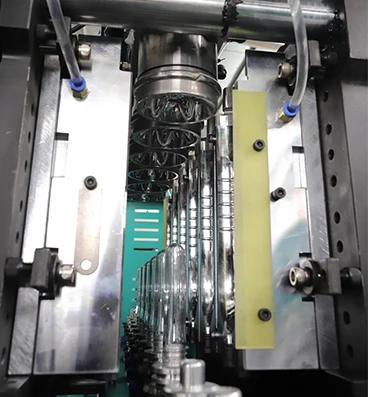

3.Special mold locking system enables faster mould locking while saves the air a lot
4.Non-pause rotation and constant temperature control oven to heat preforms and high speed mold clamping , saving more than 30% energy
5.Suitable for carbonated drinks, oil, hot filling tea ,juice and water bottles etc
