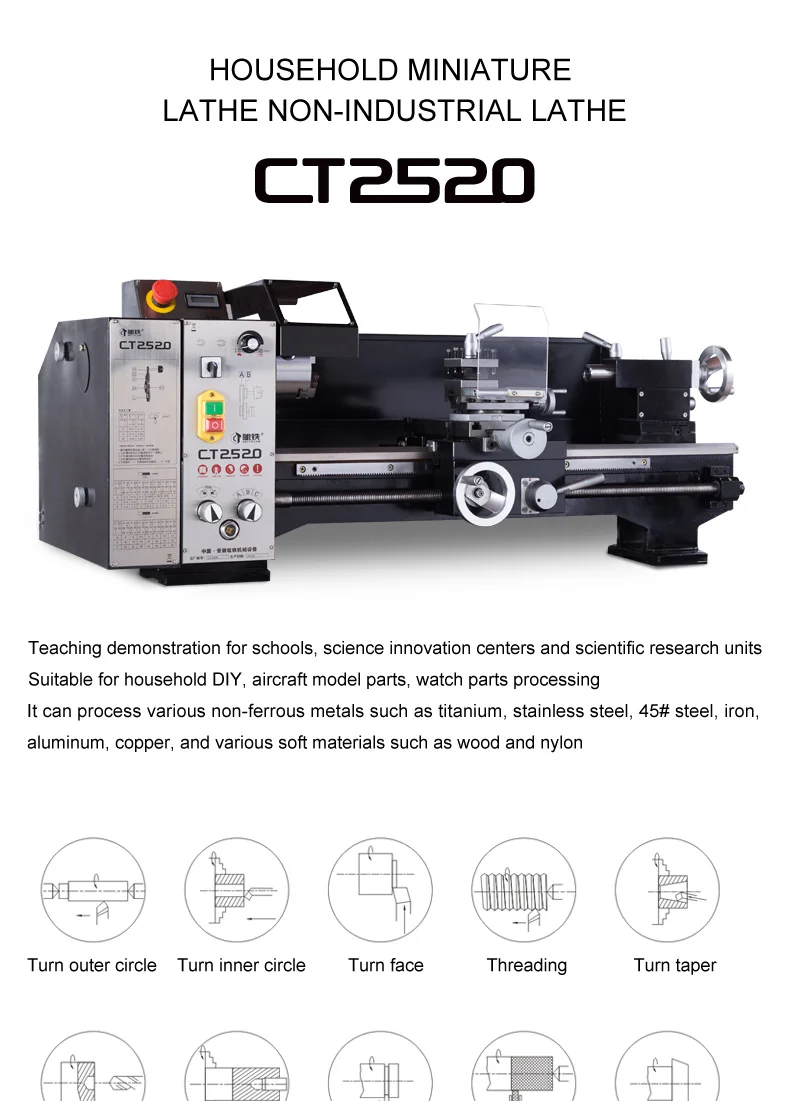

bench lathe CT2520 small machine with variable speed lathe for metal

(No reviews yet) Write a Review

$5,458.99

Current Stock:

Quantity:

Description

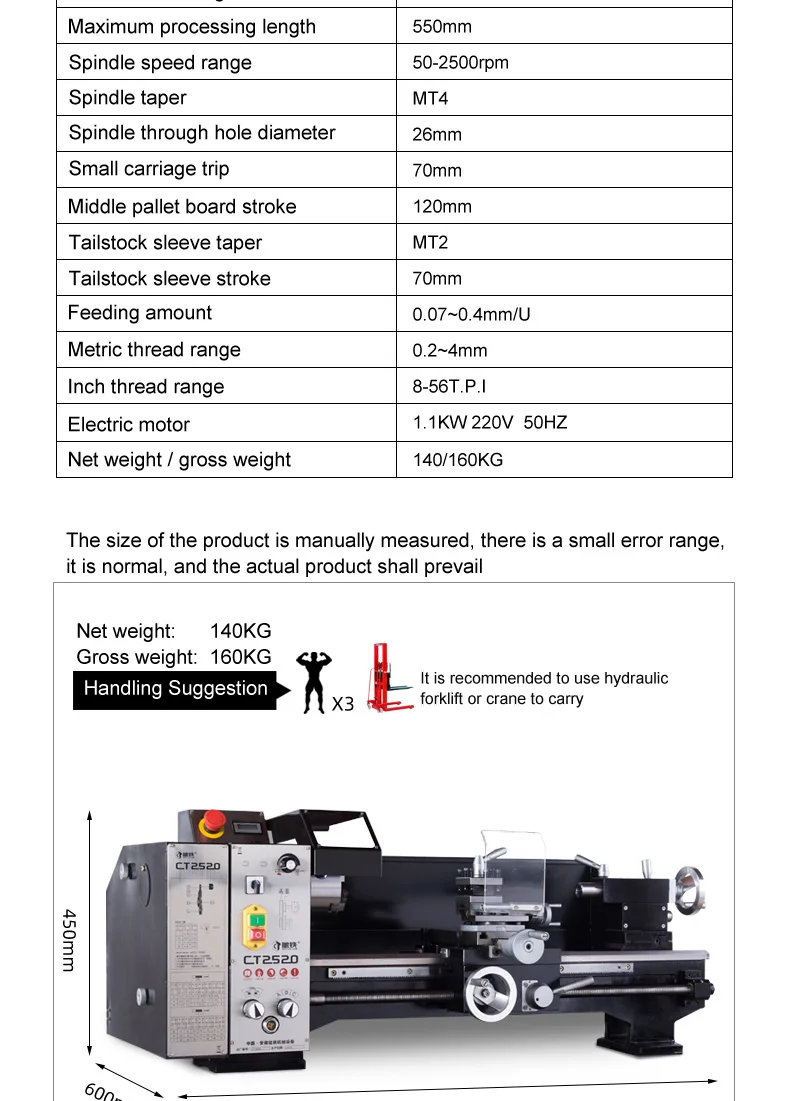

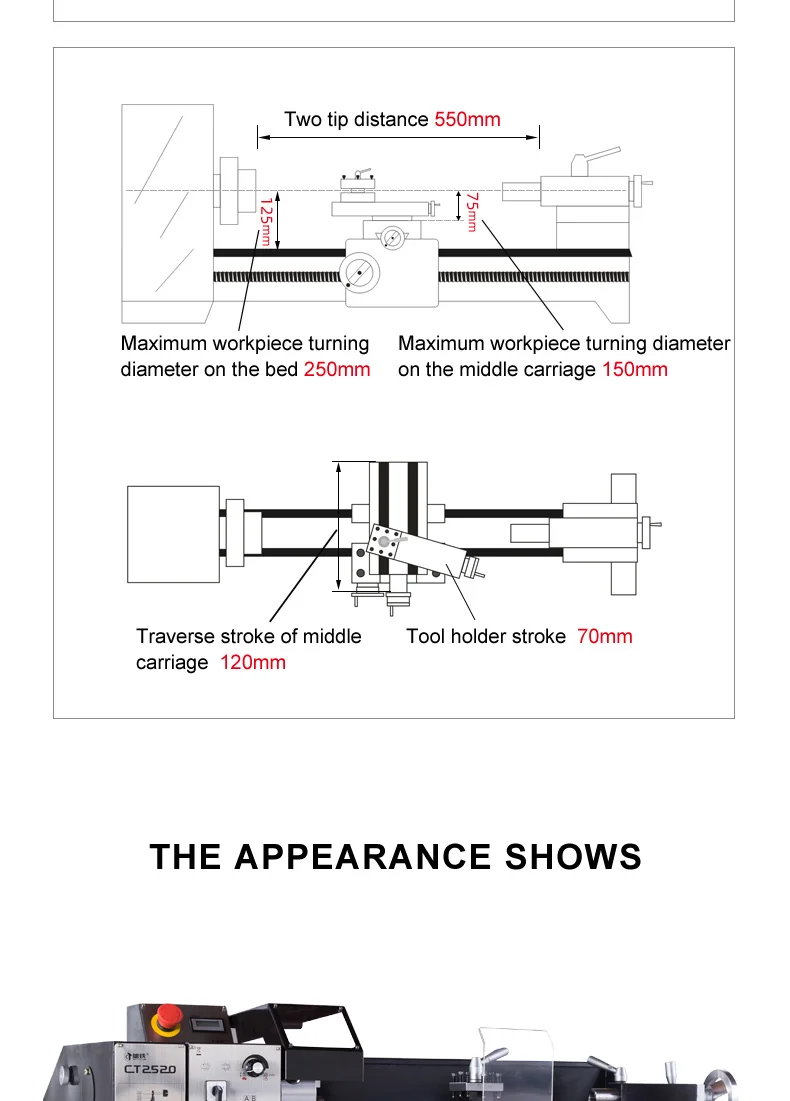

Maximum turning diameter bed	250mm
Maximum turning diameter of middle carriage	150mm
Maximum processing length	550mm

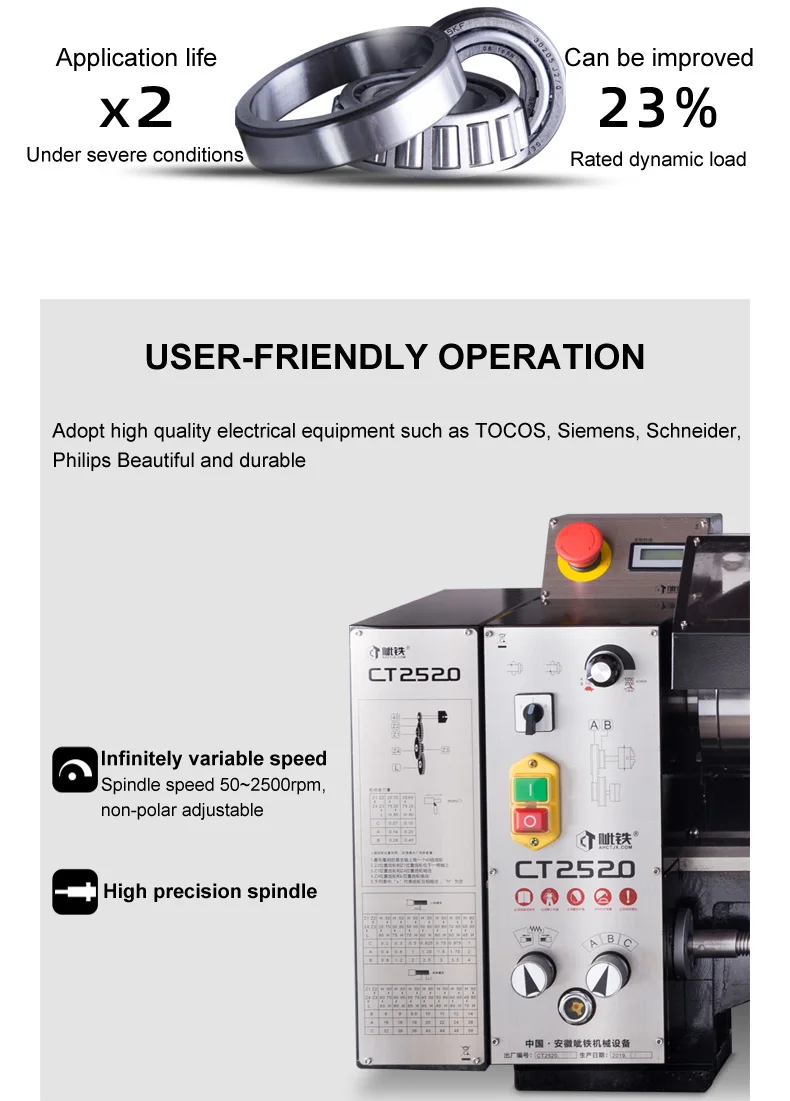

Spindle speed range/Grade	50-2500rpm/variable
Taper of spindle bore	MT4

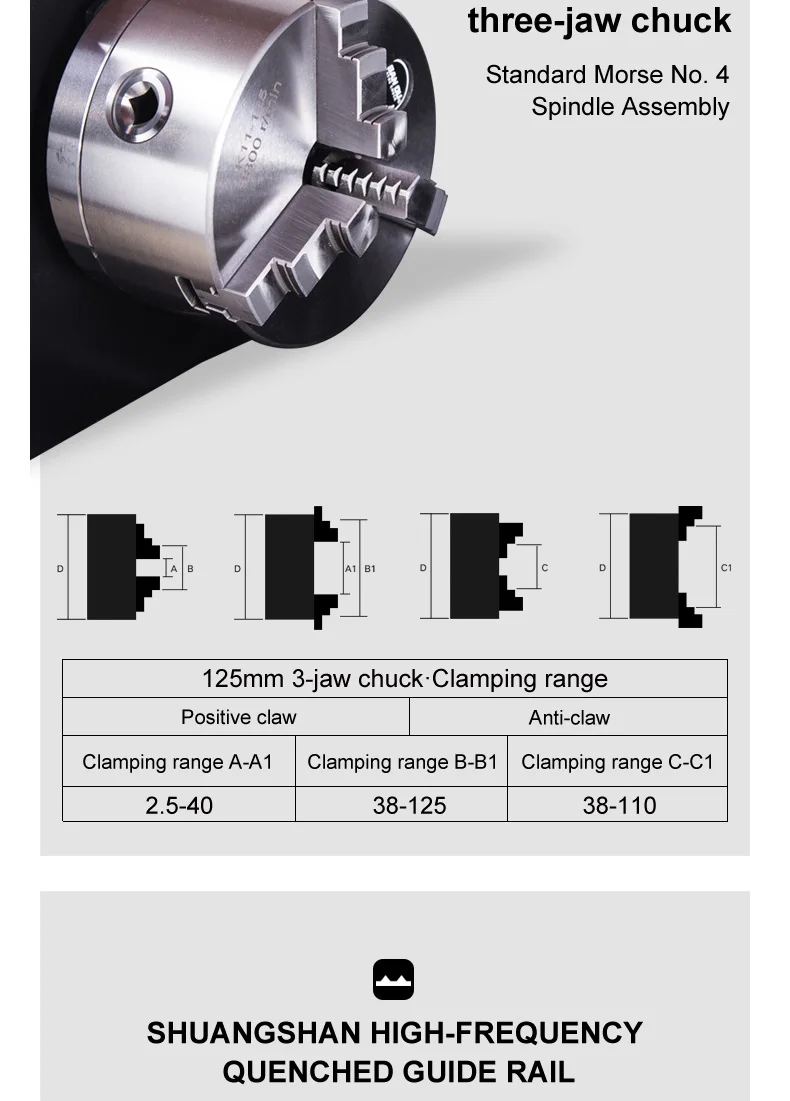

Chuck specifications	125mm
Spindle bore	26mm

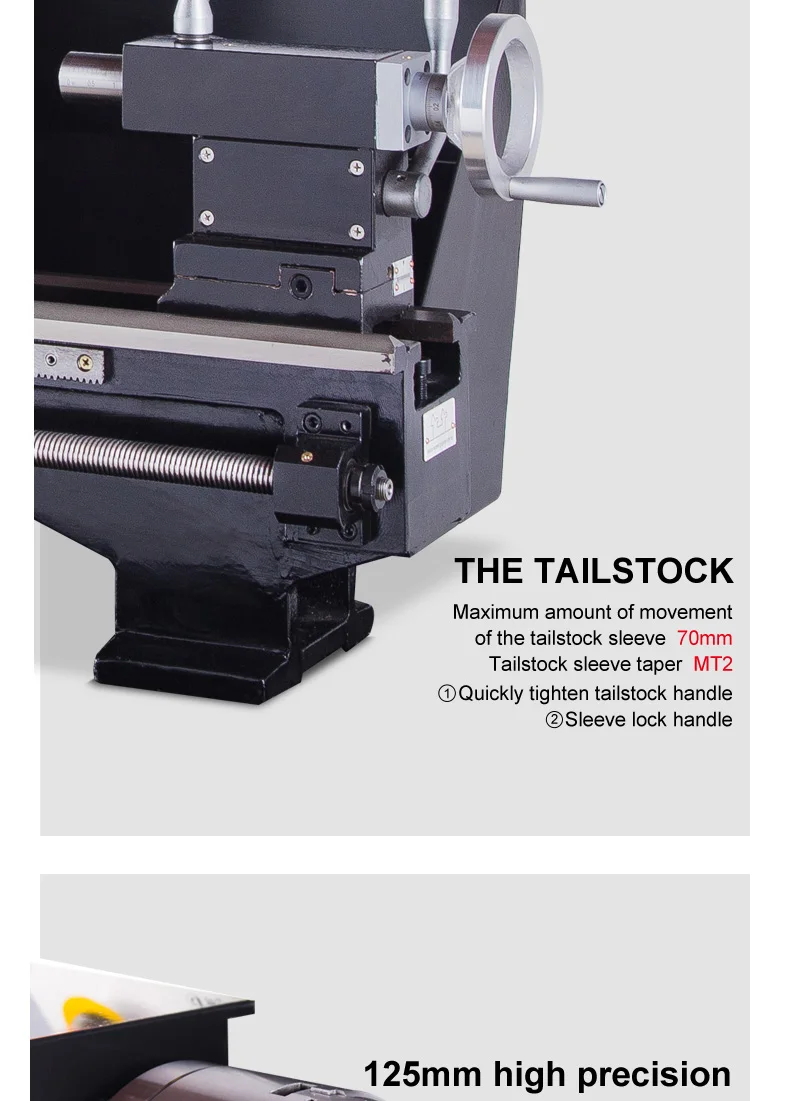

Tailstock quill travel	70mm
Taper of tailstock quill	MT2
Cross slide travel	120mm
Top slide travel	70mm
Range of metric threads/Grade	0.2-4mm
Range of inch threads/Grade	8-56T.P.I
Cutting feeds	0.07-0.4mm/U
Motor	220v/1.1kw 50HZ
N.W./G.W.	140/160KG
Machine size	1100×600×450mm

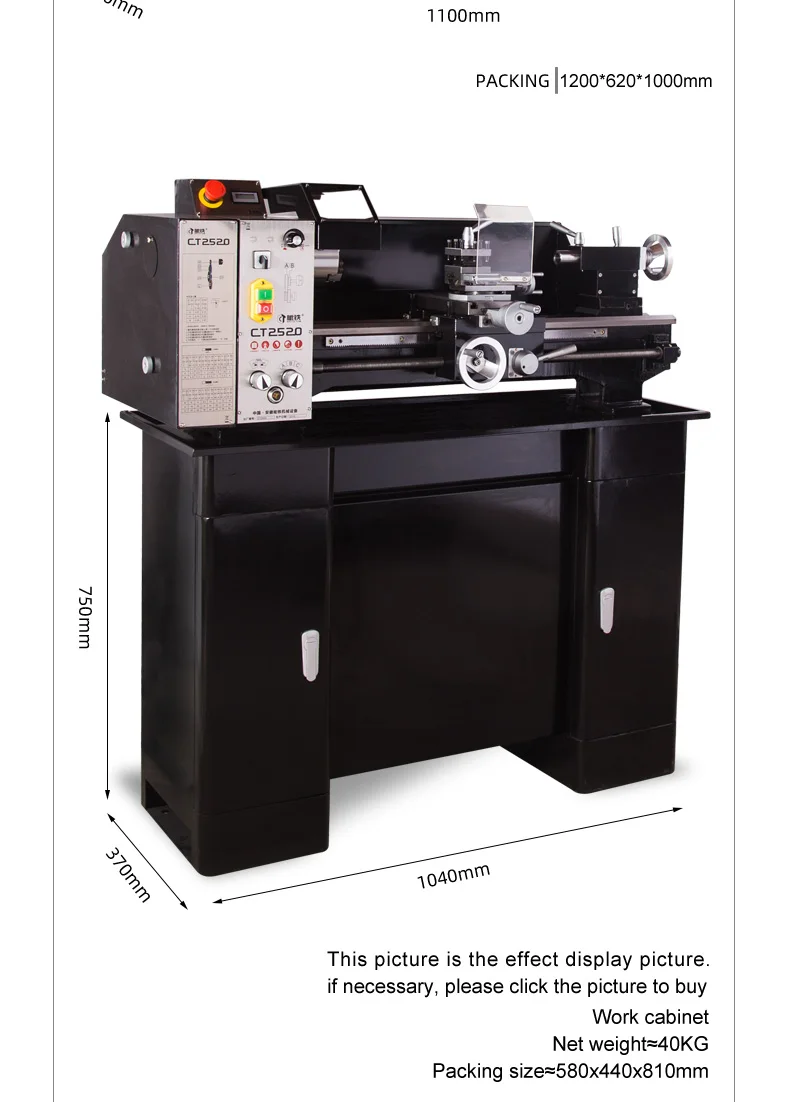

Work cabinet size	1040×370×750mm
Work cabinet weight	40kg
