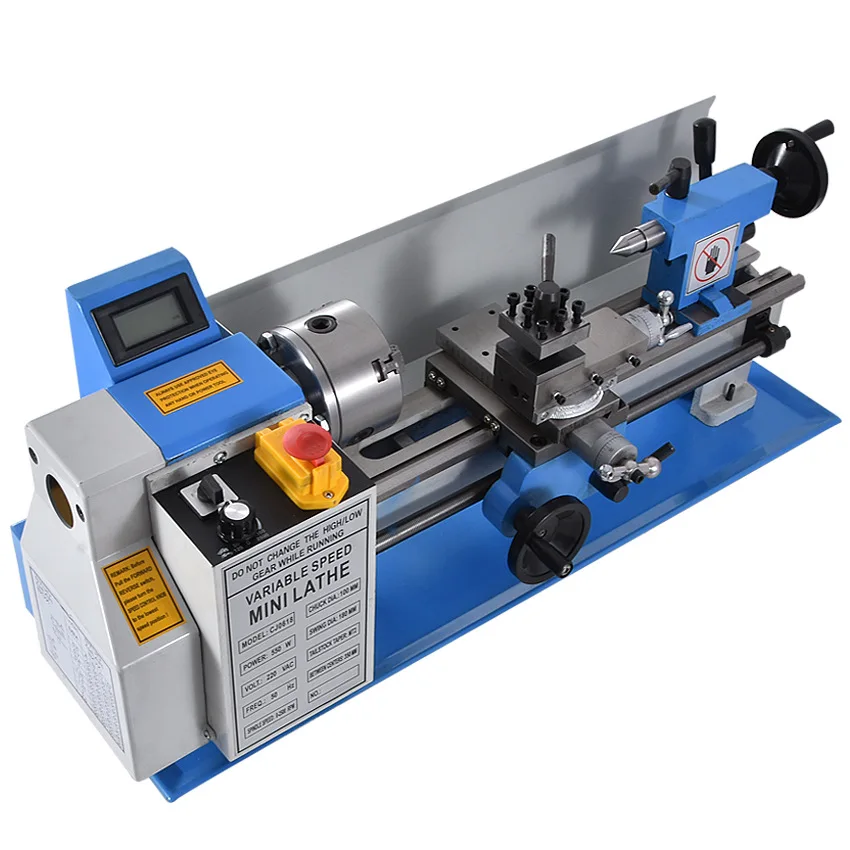

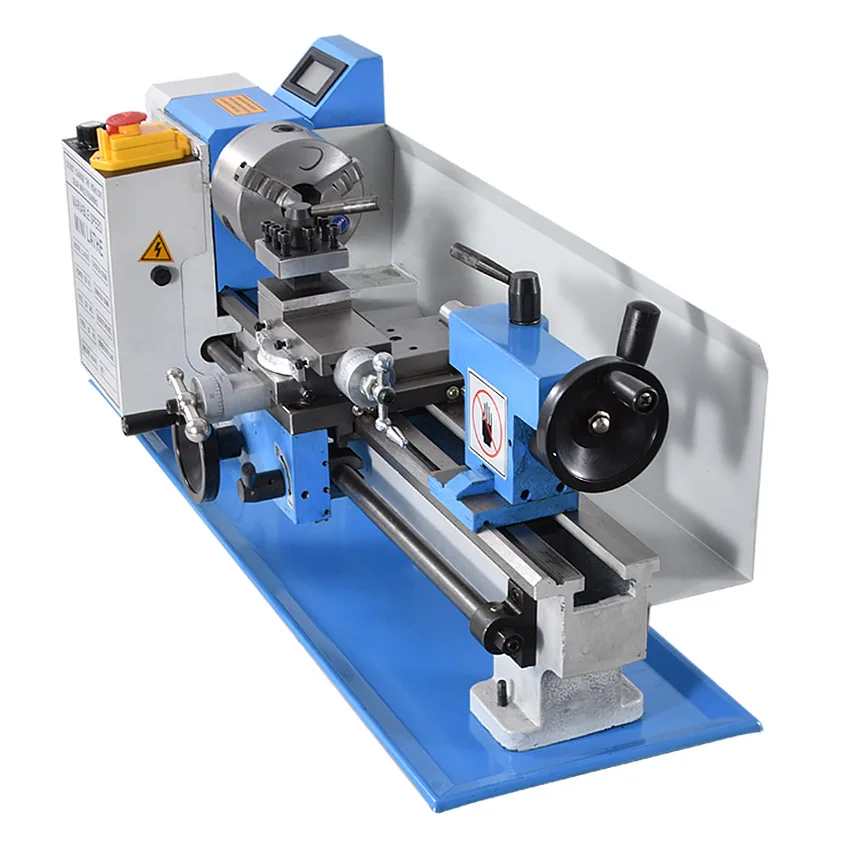

cj0618 mini cue repair lathe 0618 mini lathe 0618

(No reviews yet) Write a Review

SKU:: 205933430011181
UPC:
MPN:
Shipping:: $550.92 (Fixed Shipping Cost)

$7,757.99

Current Stock:

Quantity:

Description

Description

Product Description

Max.swing over bed	180mm/210mm
Distance between centers	350mm
Spindle taper	MT3
Spindle bore	32mm
tailstock taper	MT2
Tool holder turning diameter	110mm
Tailstock travel	40mm
Large pallet travel	195mm
Middle pallet travel	65mm
Lathe chuck	K11-100 SANOU
Range of spindle speeds	50-2500r/mim
Motor power	1100W
Packing size	7521.530.5cm
Rough weight	45kg

Detailed Images

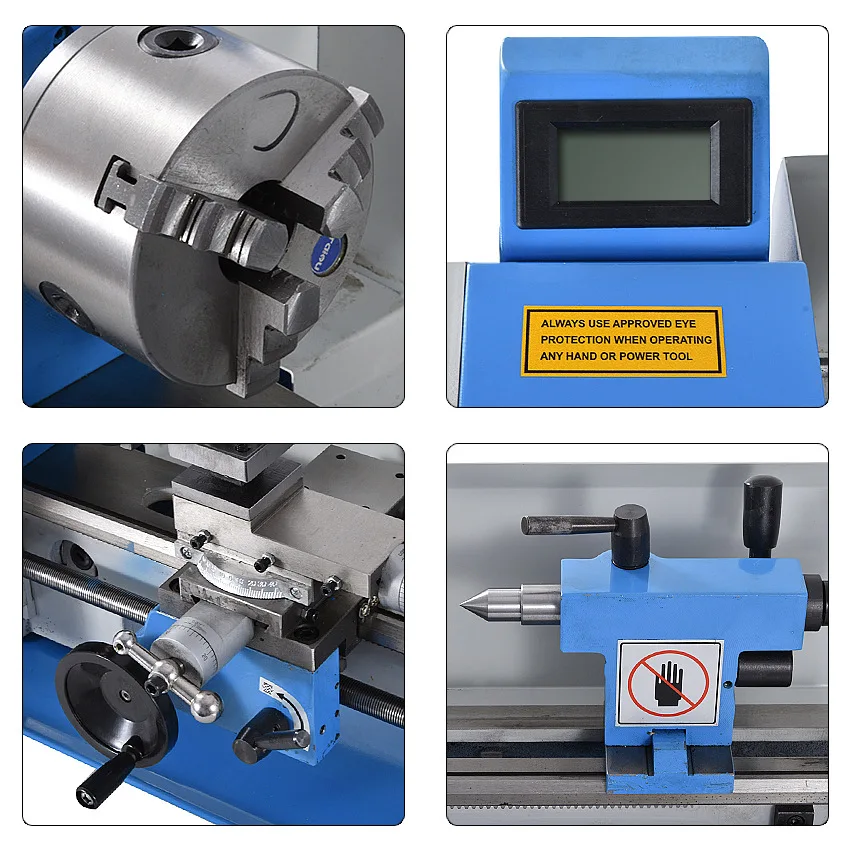

Digital display

3 Jaw chuck

100mm high precision three jaw chuck

MT3 spindle

* Can install all kinds of chuck, milling cutter, widely used

Double lock

Unique two kinds of locking mechanism, in the case of large load using nut locking, locking force stability.General processing of the use of fast locking handle, locking speed is fast and easy to operate.

Middle wheel wrench

In the middle support plate precision thickening design good rigidity on both sides of T groove can be convenient and flexible to fix different fixtures, more convenient to use, the tool rest can be removed as a whole, only need to loosen 2 screws can be out of the full proof of the workbench, convenient drilling and milling processing
