Name: CNC Milling Polishing Engraving Machine 3040 IPhone Main Board Repair Tools
SKU: 205933412011181
Price: 4808.99 AUD
Availability: InStock

CNC Milling Polishing Engraving Machine 3040 IPhone Main Board Repair Tools

(No reviews yet) Write a Review

SKU:

205933412011181

Shipping:

$592.02 (Fixed Shipping Cost)

Description

Description

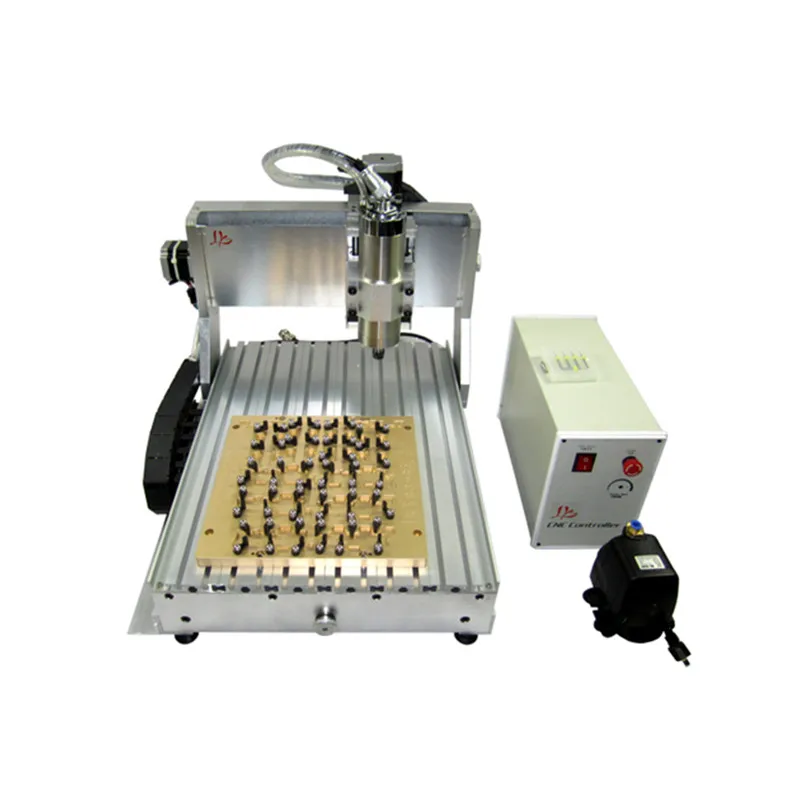

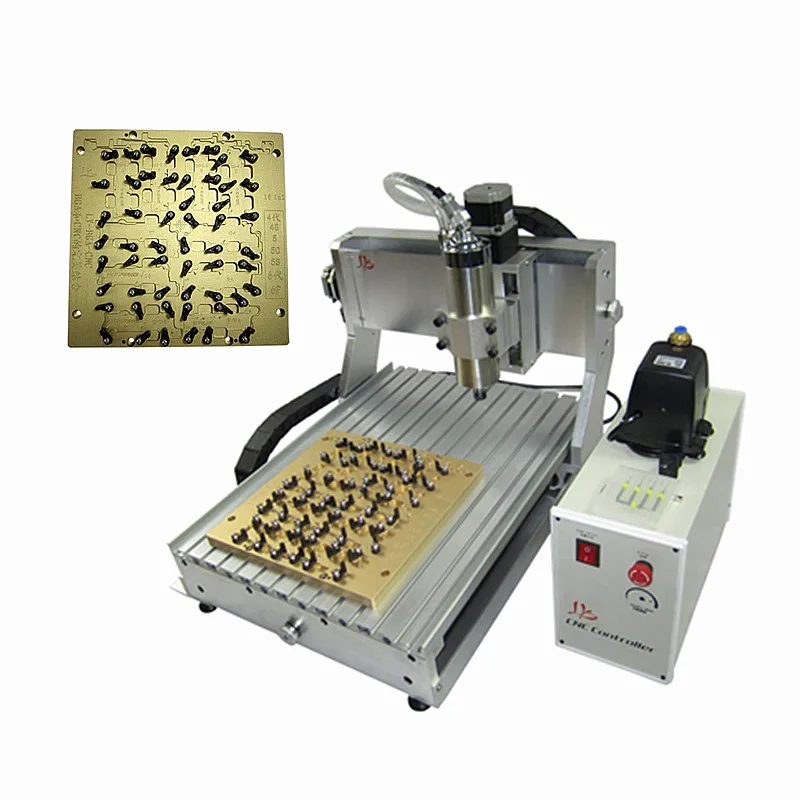

CNC Milling Polishing Engraving Machine

for iPhone Main Board Repair

LY IC cnc router

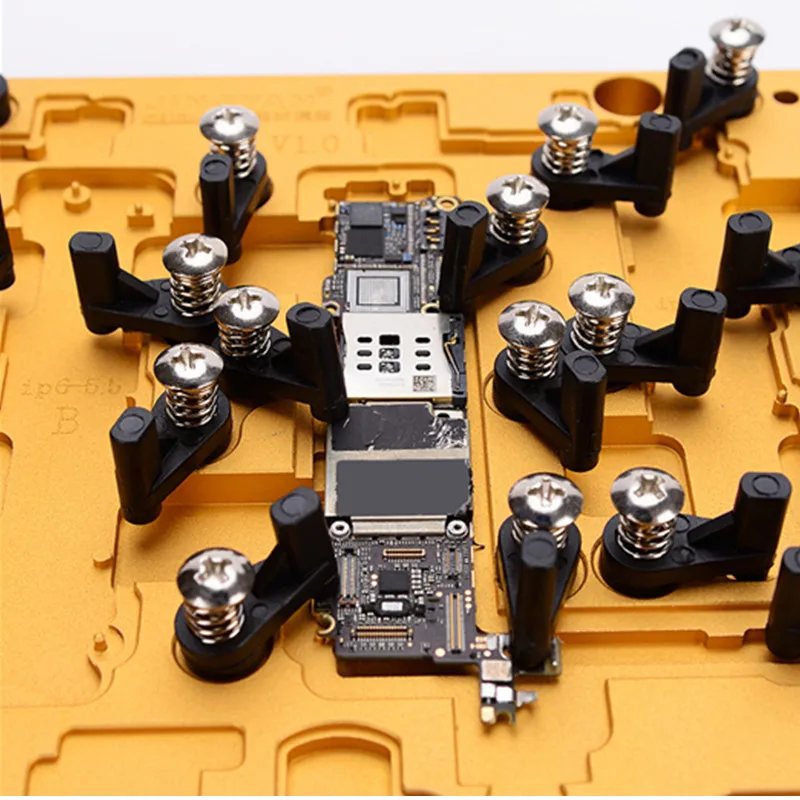

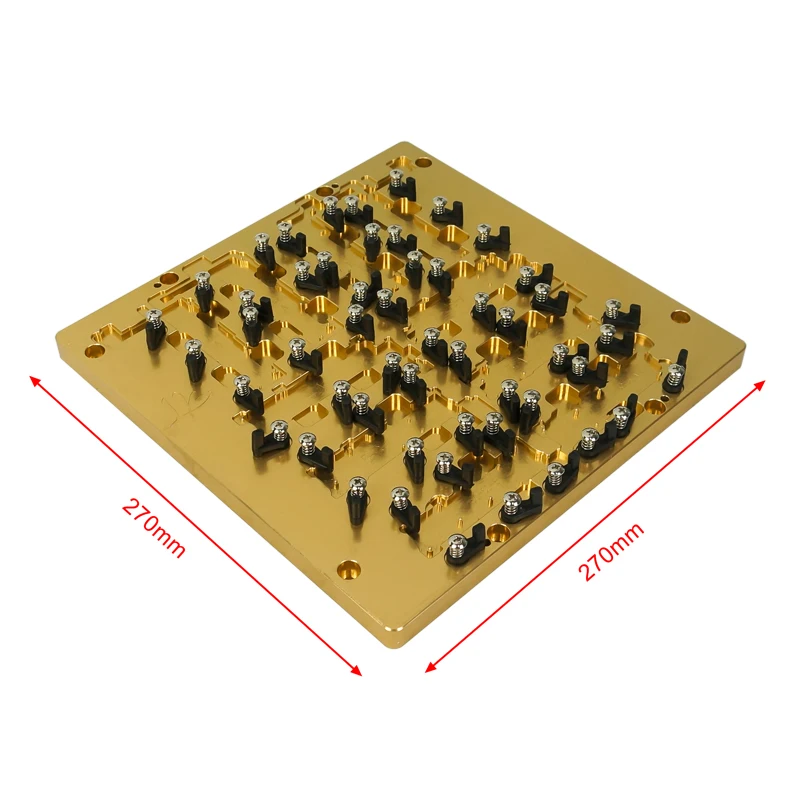

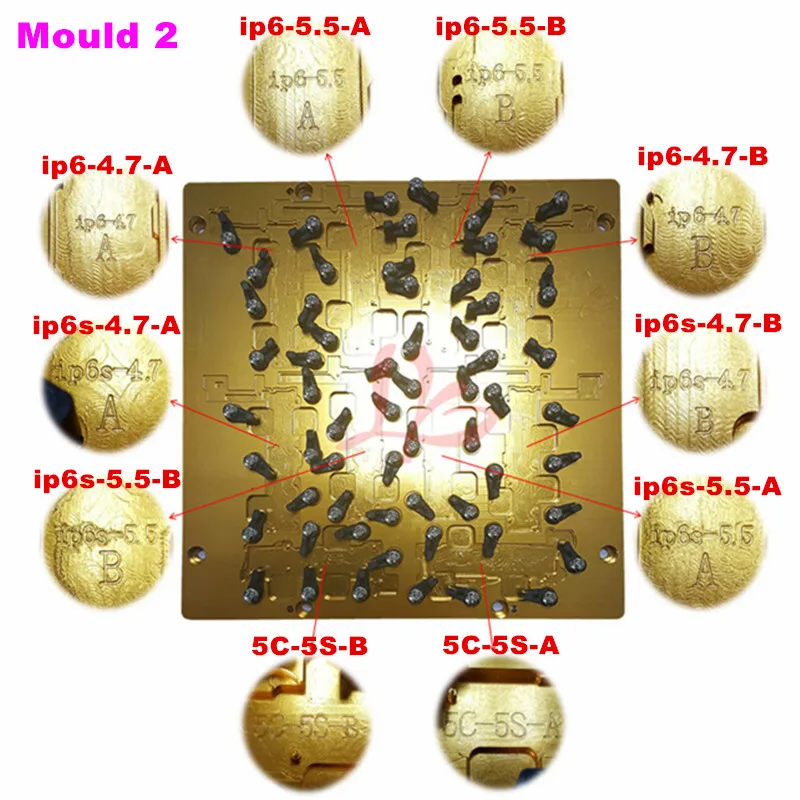

Mould 10 in 1

Introduction

Perfectly combined producs of BGA & CNC. CNC tech applied in BGA repair industry, make mobile repairing become more easier for CNC field users, can get more broad apply area

This item is perfect to grind and remove the CUP, HHD, WIFI, FONT chips in iPhone series mobile phone without any damage in the board. It is effective machine to help you repair the iPhone 4, 4S, 5, 5C and 5S. You can use the soldering station to solder a good chip in the board after grinding. Great grinding machine in mobile phone repairing and refurbishing

Product Description

Technical Parameters

Machine Dimensions:	600X510X480mm
Rack material:	6061 and 6063 Hard aluminum alloy (The unique and dedicated mold extrusion profiles, Let counterfeiters dwarfs.)
Engraving area:	400X300mm
Z-Axis Stroke:	80mm, Engraving depth depends on the length of the tool edge
Acceptable material thickness:	≤80mm
Rail type:	Chromeplate shaft + Linear Bearings, Surface hardening 61HRC
Type of screw:	Ball screw 1605, Pitch 4mm
Spindle motor:	1.5KW water cooling spindle , 0-24000r/min
Collet type:	ER11,1/8"(3.175mm) Collet
Stepper motor and drive:	two-phase hybrid stepping motor 57BYGH56-4011YD, 8 segments drive.
Maximum operating speed:	4000mm/min (Engraving speed : 300-3000mm/min)
Repeat positioning Accuracy:	0.03mm

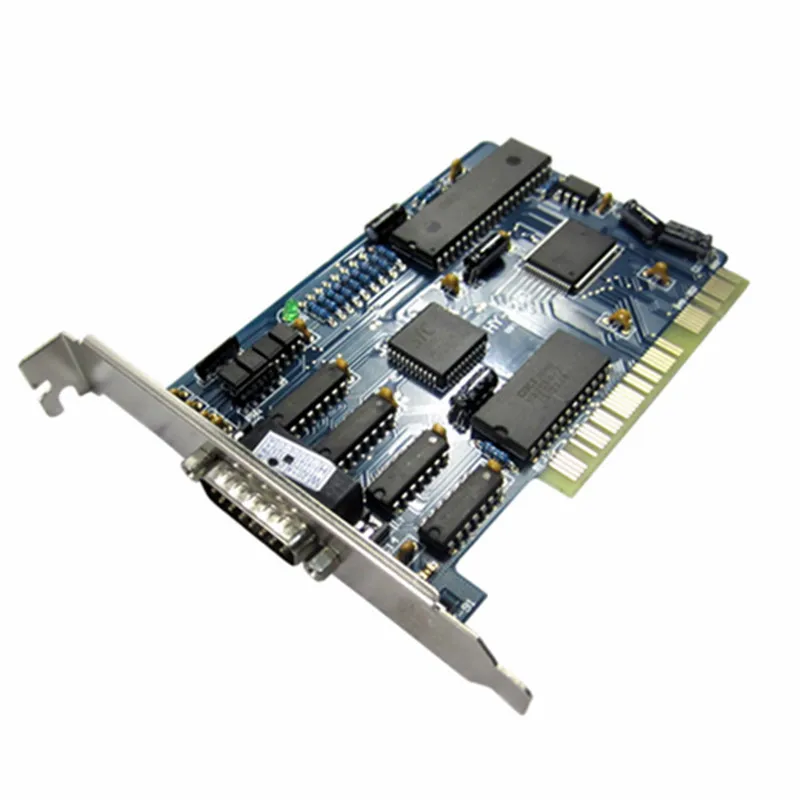

Communication interface:	Parallel port
Software Compatability:	English
Command code:	G code/.nc/.ncc/.tab/.txt
Machine weight:	55kg
