Cq9325 Bench Lathe Machine Machining Break Mechanical Lathe Machine

(No reviews yet) Write a Review

SKU:: 205935326011181
UPC:
MPN:
Shipping:: Free Shipping

$10,221.99

Current Stock:

Quantity:

Description

Description

Product Description

Spindle bore	40.5mm
Distance between centers	800mm
Max.swing over bed	360mm
Swing over cross slide	240mm
Taper of spindle bore	MT5
Taper of tailstock quill	MT3
Cross slide travel	180mm
Top Slide travel	100mm
Tailstock travel	100mm
Number of metric threads	22
Number of inch threads	45
Range of metric threads	0.2-7mm
Range of inch threads	2 1/2-48 1/n"
Range of cross feeds	0.045-0.6mmr
Range of longitudinal feeds	0.1-1.4mmr
Number of spindle speeds	12
Range of spindle speeds	80-2000r/mim

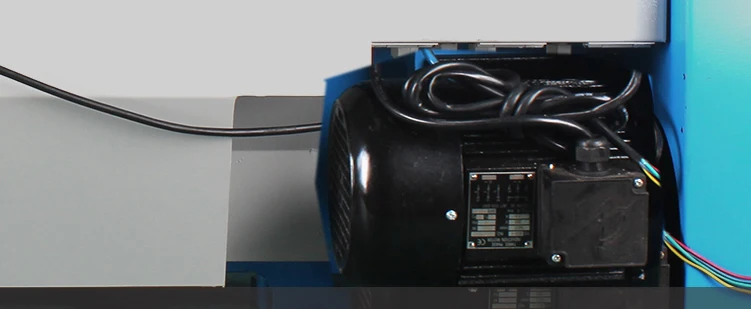

Motor power	220V 1500W 380V 1100W

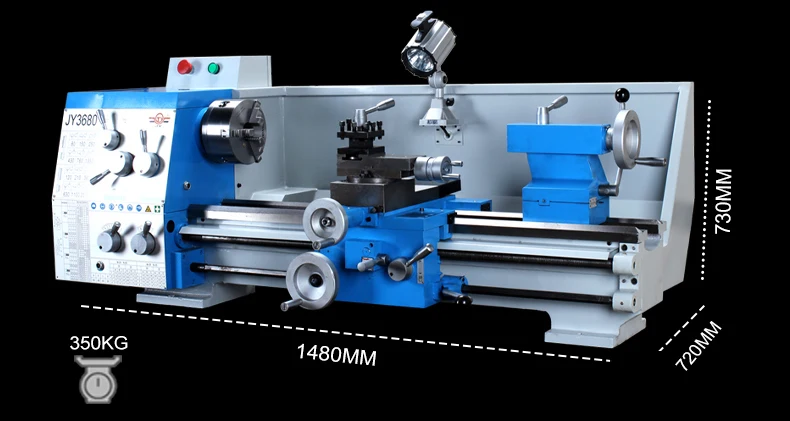

Machine size	1480720730mm

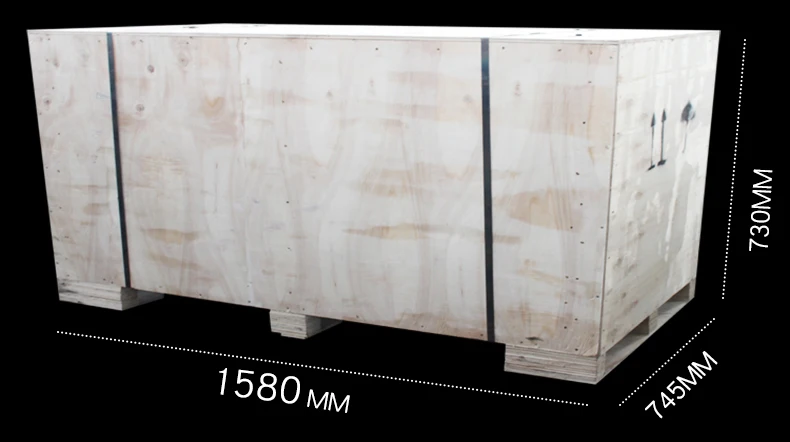

Packing size	1580745730mm
Net Weight/Rough Weight	350/380kg

Detailed Images

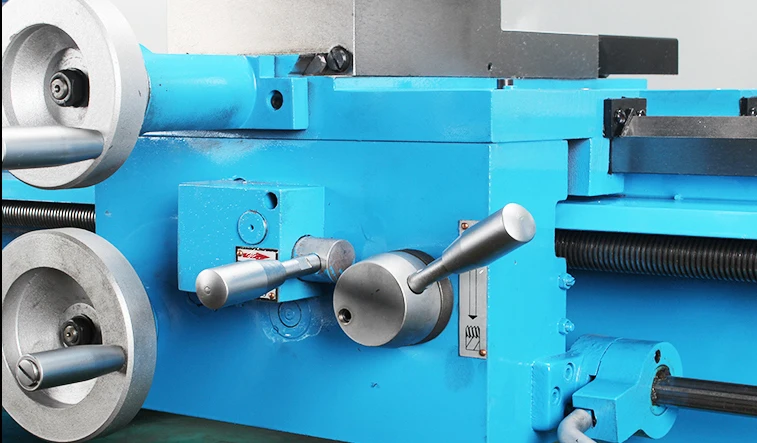

* Equipped with all metal gear, strong power.Wear-resistant, durable, more accurate transmission.Especially the screw thread is more accurate.

*Adopt high-precision three-jaw chuck, can clamping round parts, also can according to customer requirements to replace four-jaw linkage, four-jaw single chuck, used for machining square and irregular parts

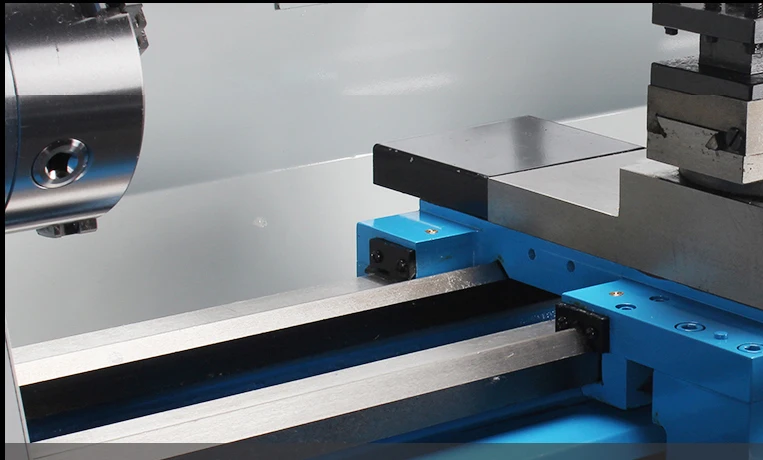

*V - shaped guide ways to ensure that the main axis and bed guide surface parallelism is not easy to change.After long natural aging, high frequency quenching has good positioning accuracy and excellent cutting performance.
