dry pet feed dog cat food production line pet food processing machine line
- SKU:
- 206378734011181
- Shipping:
- $16,856.09 (Fixed Shipping Cost)
Description
1. Brief Introduction:
The fishing float making machinery and inflating production machine line can produce both floating and sinking feed pellets for fish, shrimp, crab, etc.

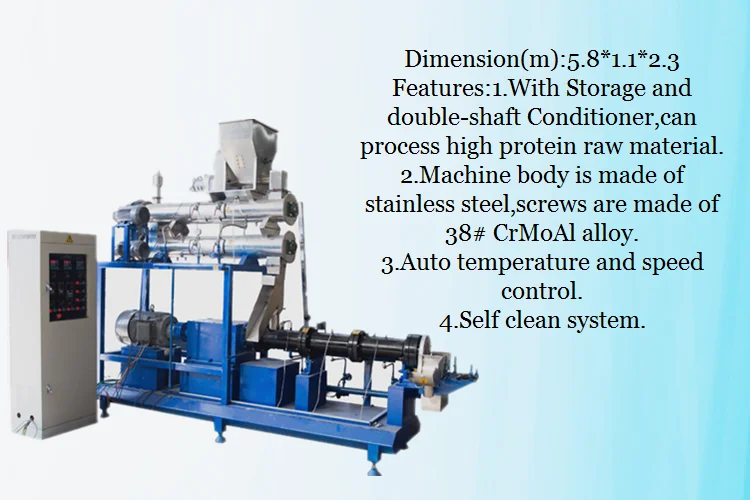

According to different fish varieties, the feed type will be various. And different ages fish require different sizes feed pellet. Our twin screw extruders can produce floating and sinking feed size range 1.2-12 mm by adjusting temperature, moisture, formulation and changing moulds.
Our fishing float making machinery also can be used for dry pet food production, such as dog food, cat food, bird feed, monkey food, etc.
2. Capacity: 200-2000kg/h
3. Voltage:
Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers'local voltage according to different countries.
4. Machines Materials:
All the machines are made by stainless steel.
5. Technical Parameter:
|
Model
|
HM70
|
HM85
|
HM95
|
|
Installed Power
|
90KW
|
120KW
|
180KW
|
|
Power Consumption
|
50KW
|
90KW
|
120KW
|
|
Production Capacity
|
200-250Kg/h
|
800-1000Kg/h
|
1500-2000Kg/h
|
|
Dimension
|
24000*1500*2200mm
|
30000*3500*2300mm
|
45000*2500*2600mm
|
6. Flow chart:

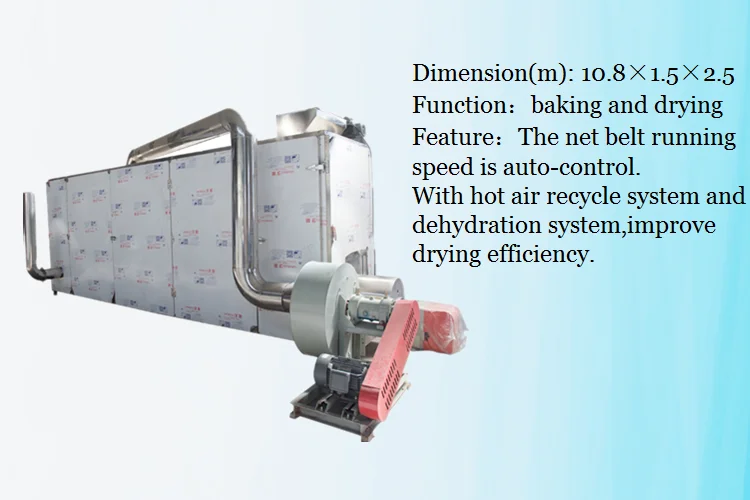

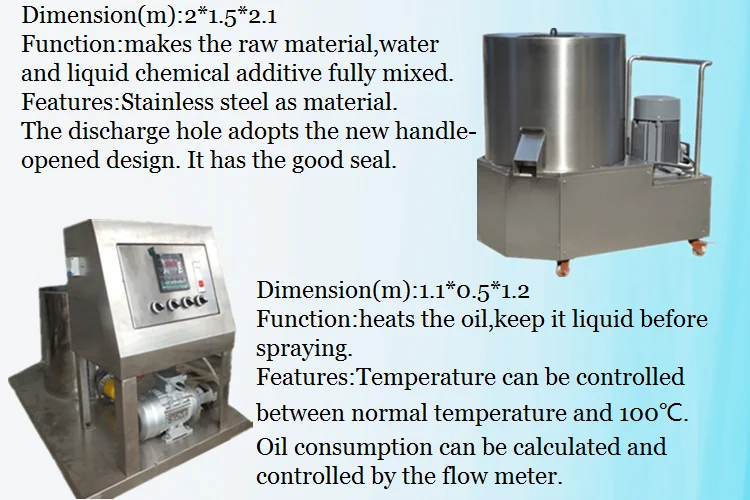

Mixer--- Screw conveyor--- Twin-screw extruder ---Hoister --- Dryer ---Flavoring line---Cooling
7. Raw Material:
Fish Meal
Corn Flour
Soya Bean
This production line can produce all kinds of animal food,such as dog food,cat food,fish food,bird food and so on.
