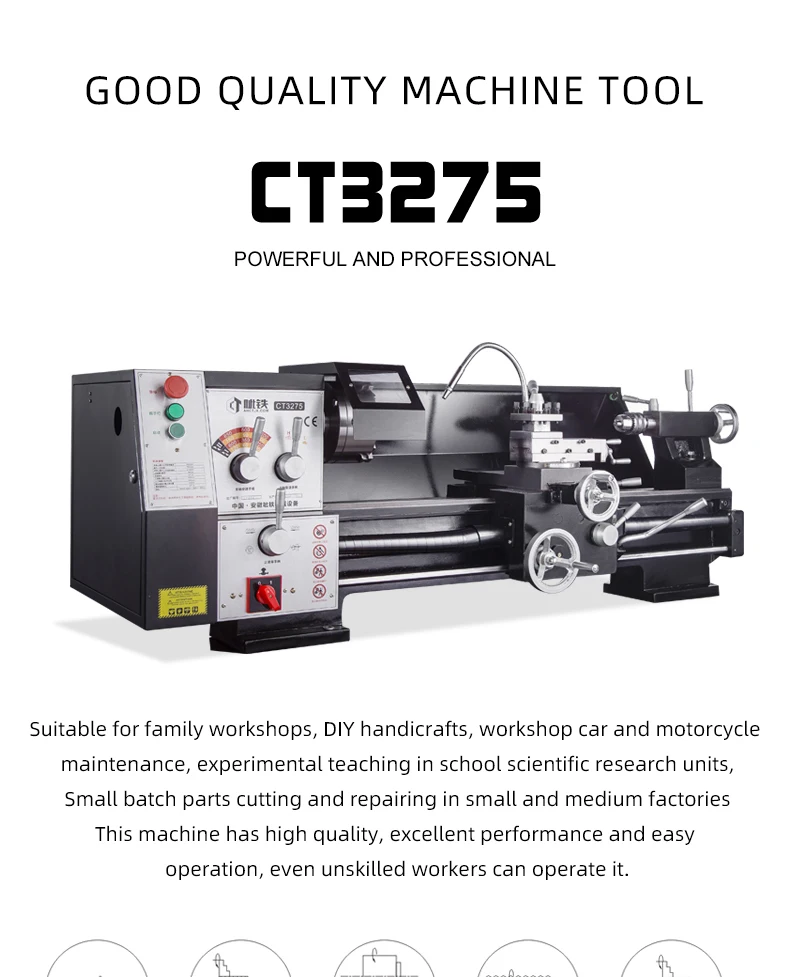

Manual Lathe CT3275 Lath Machine with CE Top Engine Lathe Mt 250 Engine

(No reviews yet) Write a Review

$8,066.99

Current Stock:

Quantity:

Description

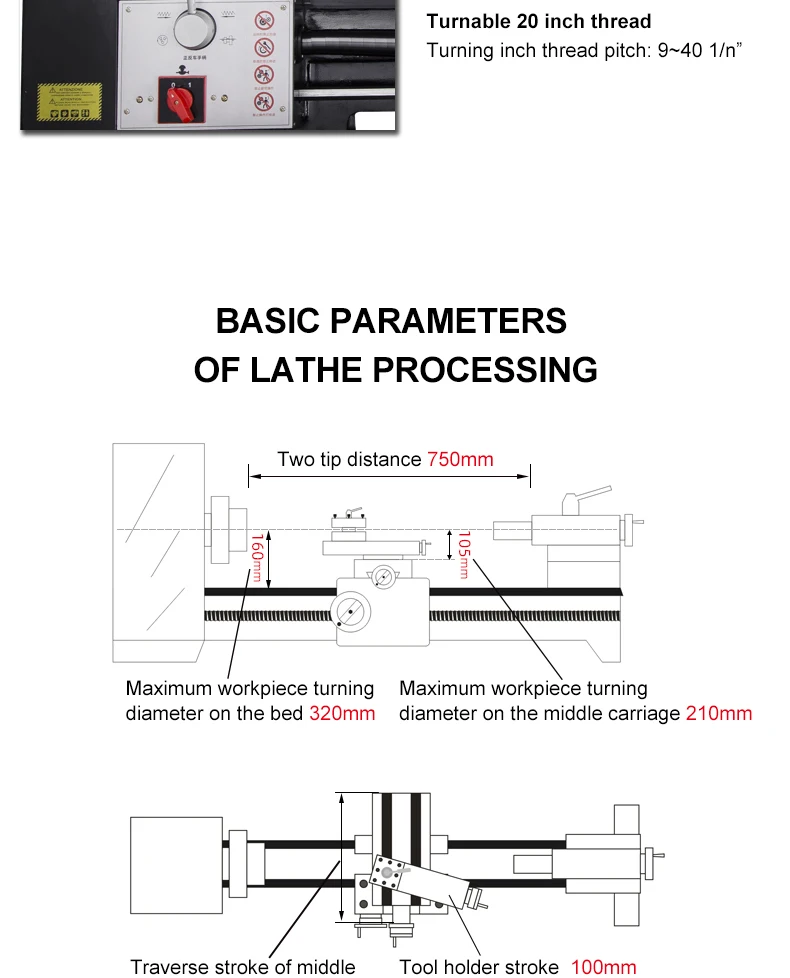

Maximum turning diameter bed	320mm
Maximum turning diameter of middle carriage	210mm
Maximum processing length	750mm

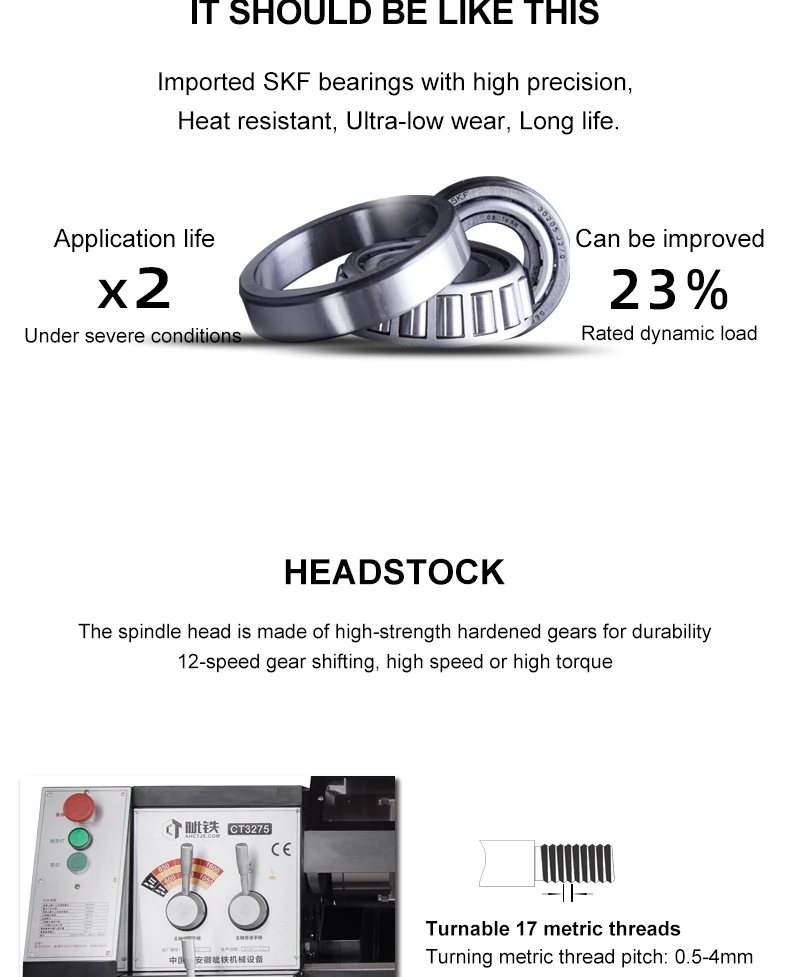

Spindle speed range/Grade	60-1600rpm/12
Taper of spindle bore	MT5

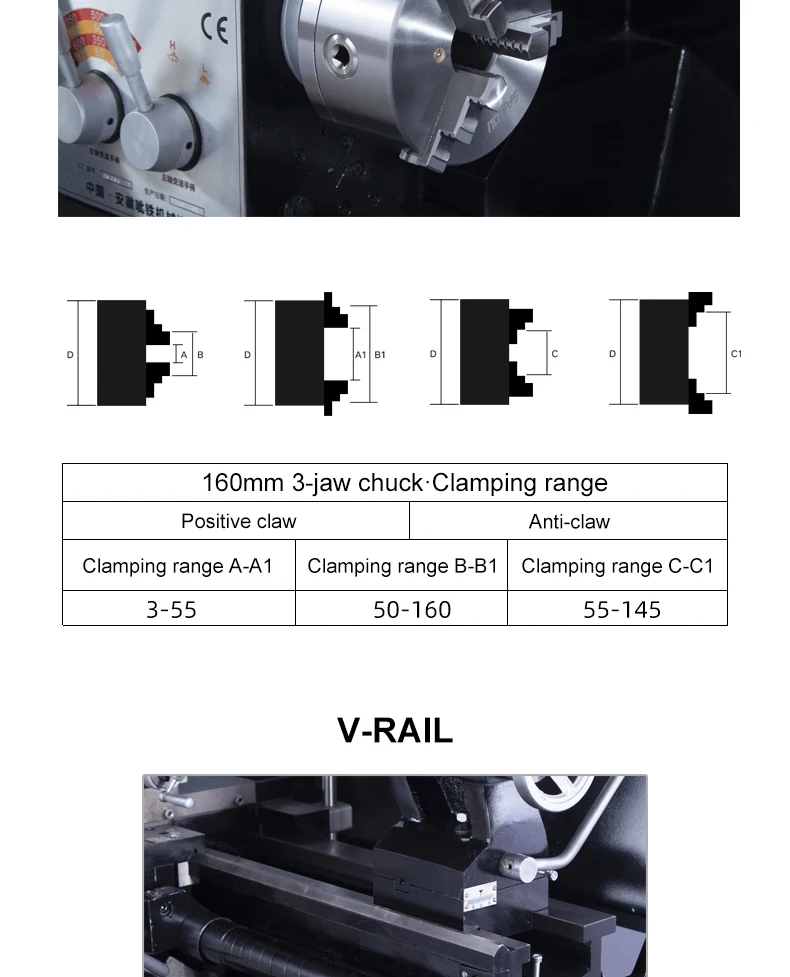

Chuck specifications	160mm
Spindle bore	38mm

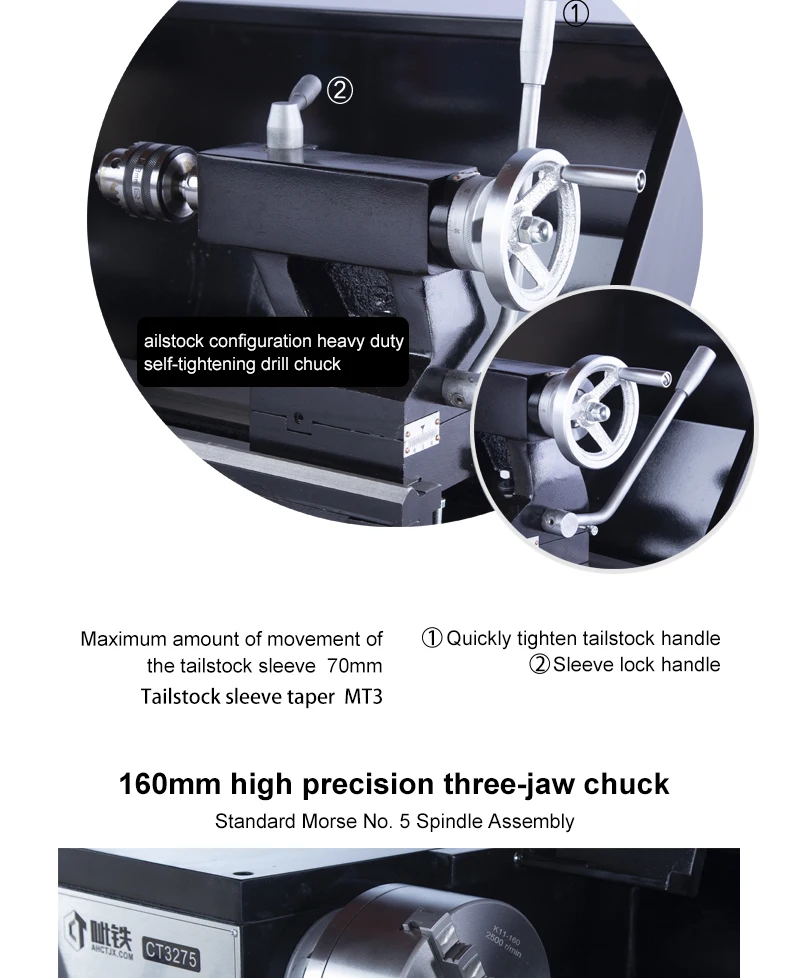

Tailstock quill travel	70mm
Taper of tailstock quill	MT3
Cross slide travel	170mm
Top slide travel	100mm
Range of metric threads/Grade	0.5-4mm/17
Range of inch threads/Grade	9-40T.P.I/20
Range of cross feeds	0.025-0.34mm/r
Range of longitudinal feeds	0.135-1.8mm/r

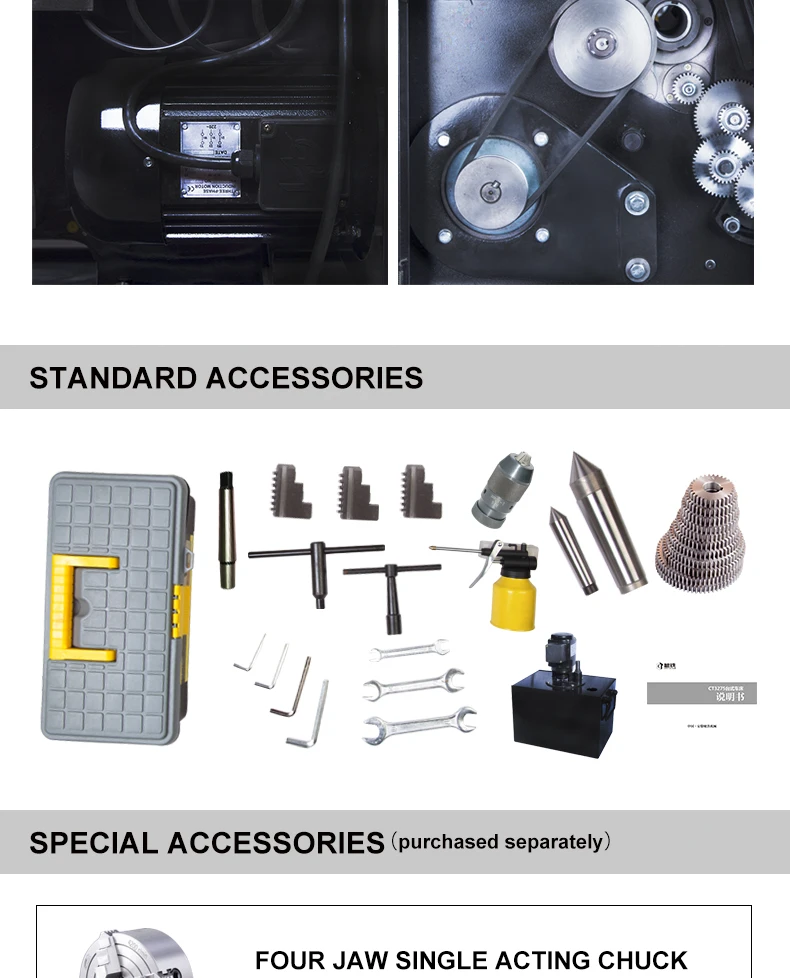

Motor	220v(380v)/1.5kw
N.W./G.W.	320/360kg

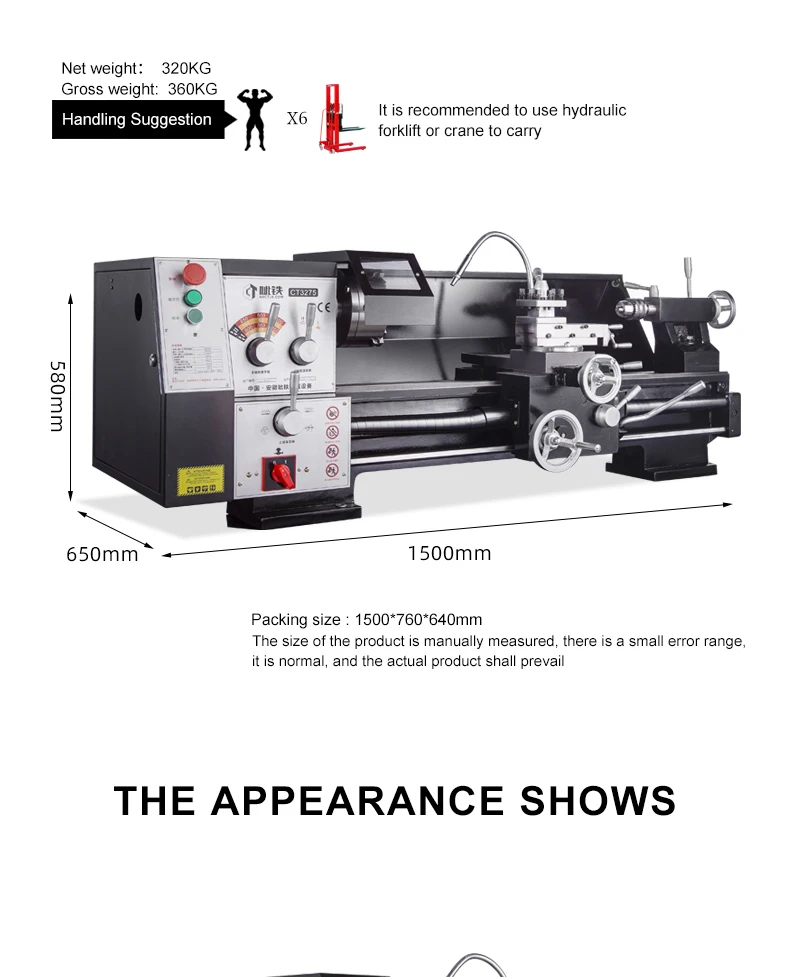

Machine size	1500×760×640mm
