Name: Mini Co2 Laser Engraver 40W Carving Artwork Milling Woodworking 4030
SKU: 205871351011181
Price: 2321.99 AUD
Availability: InStock

Mini Co2 Laser Engraver 40W Carving Artwork Milling Woodworking 4030

(No reviews yet) Write a Review

SKU:

205871351011181

Shipping:

Calculated at Checkout

Description

Description

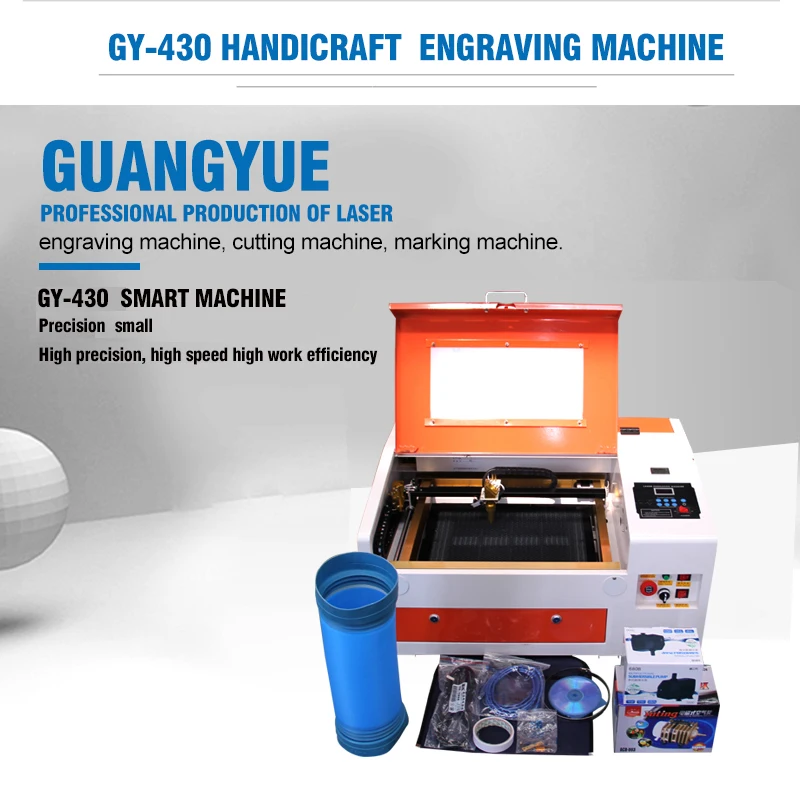

400*300mm Mini Co2 Laser Engraver 40W Carving Tools Artwork Milling Woodworking 4030 small laser cutting machine

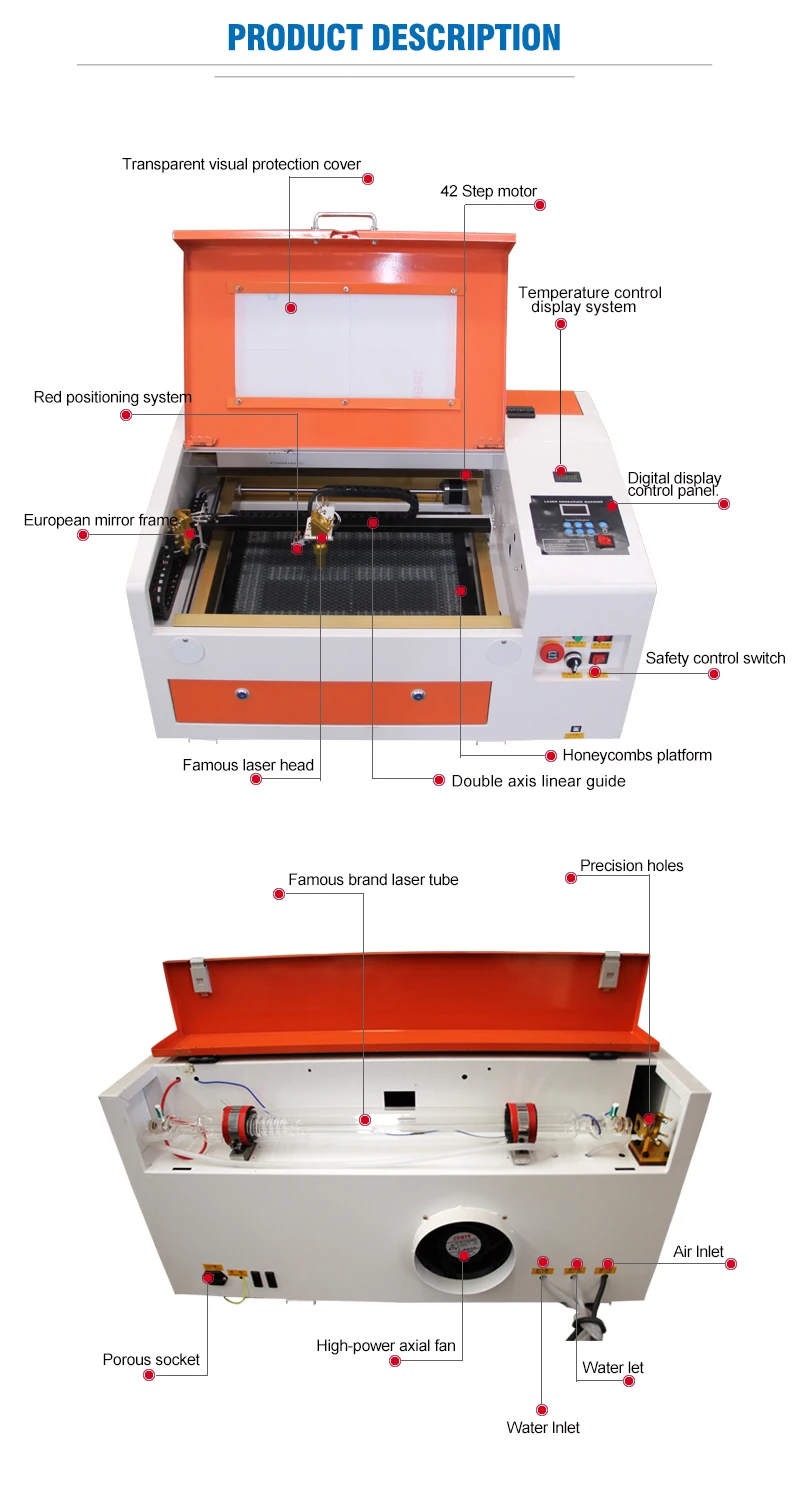

Product Description

DESCRIPTION

Application of laser engraver 3040

Mainly used for the engraving and cutting of little artistic works.such as engraved portraits,badges,breast cards and various engraved packages.It can also engrave little artistic ,seals and crabs.

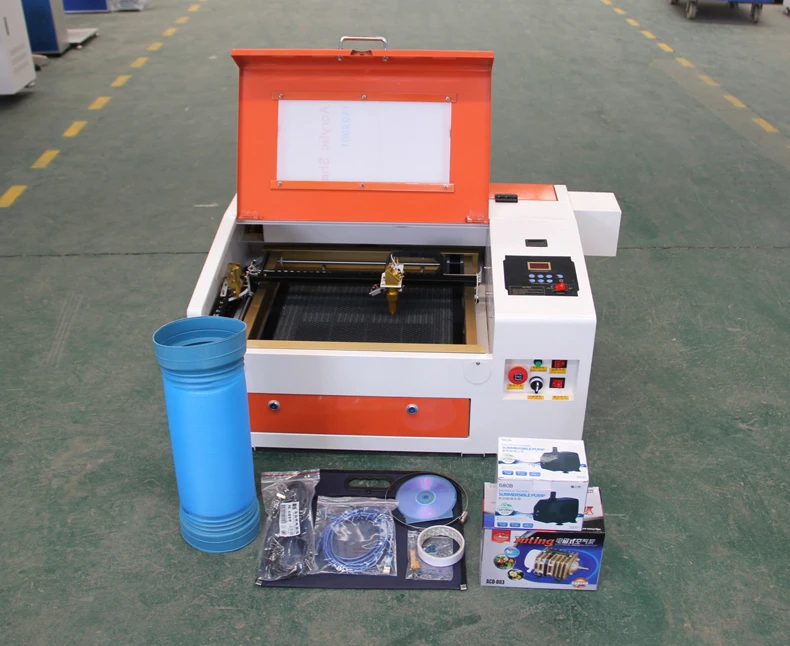

PRODUCT'S PICTURE

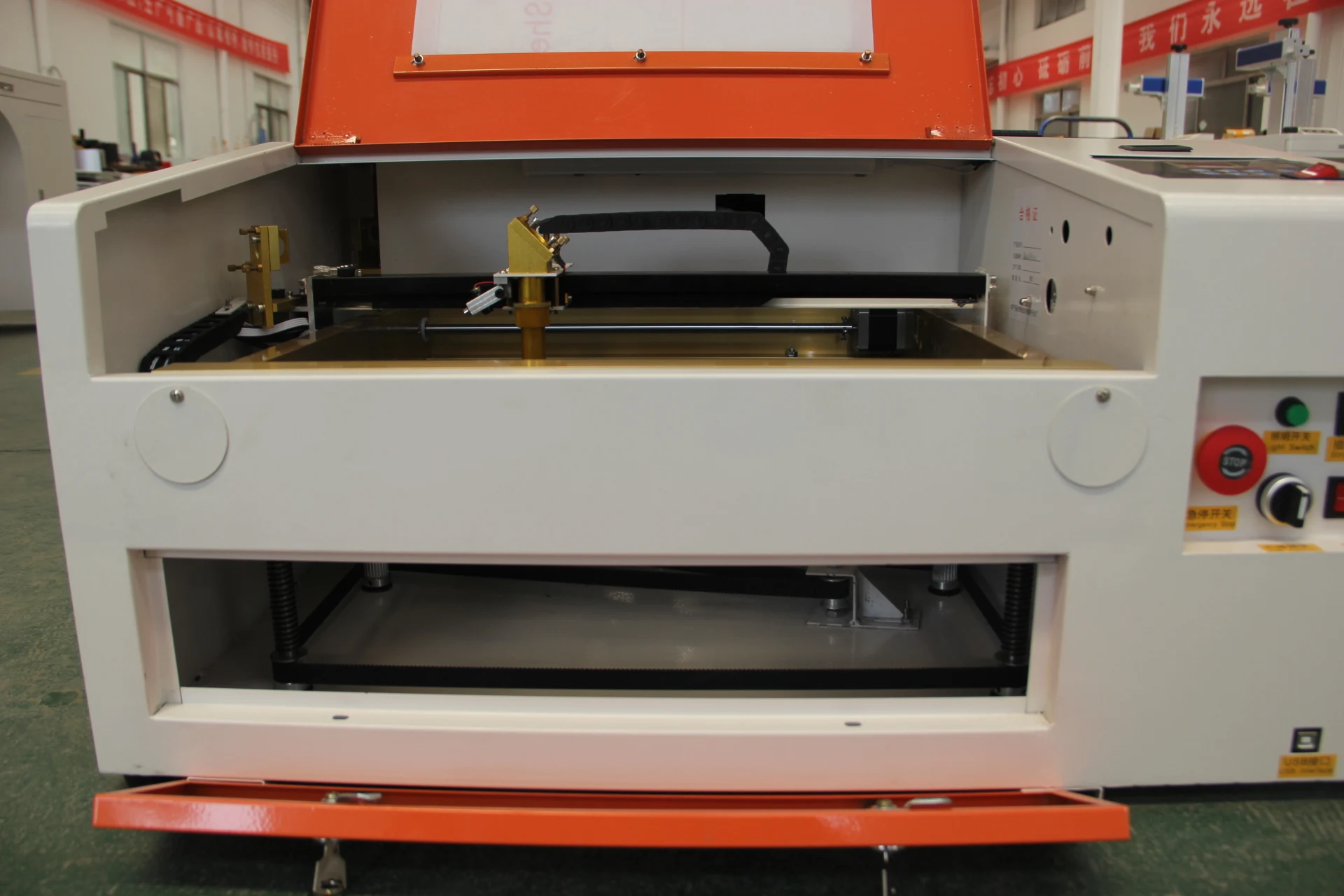

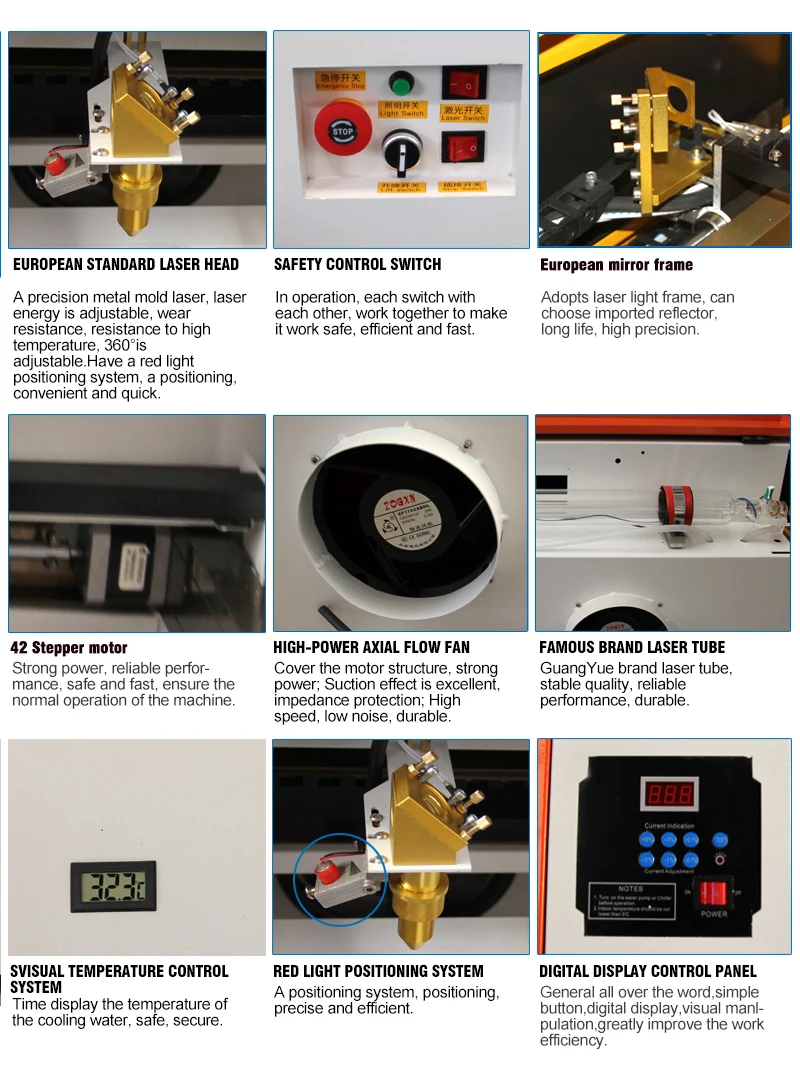

PICTURES FOR DETAILS

SPCIFICATION

Model	GY 430/4030 laser cutter
Colour	Orange and white
Working Table Size	*300 400mm**

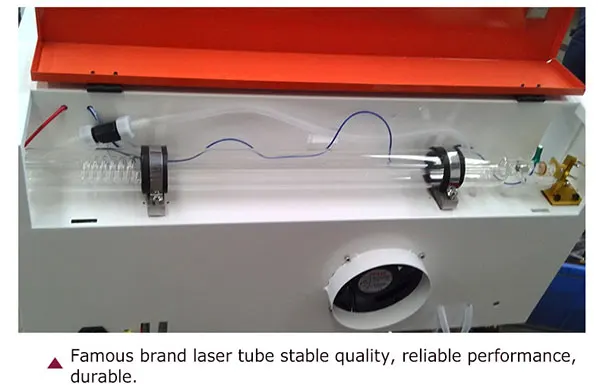

Laser Tube	Sealed CO2 glass Tube
Working Table	Honeycomb/Aliuminium (optional)
Laser Power	40W/50W/60W
Cutting Speed	0-3600 mm/min
Engraving Speed	0-30000mm/min
Resolution	±0.05mm/1000DPI
Minimum Letter	*English 1×1mm (Chinese Characters 22mm)**
Support Fils	BMP,HPGL,PLT,DST and AI
Port	USB 2.0 Plug and play
Software	CorelDraw (Direct Output)
Motor	Stepper
Power Voltage	AC 110-220V±10%,50-60Hz
Working Environment	0-45℃(temperature) 5-95%(humidity)
Power consumption	<300W (Total)
Z-Axis Movement	Automatic (0-300mm adjustable)
Position system	Red-light pointer
Cooling way	Water cooling and protection system
Cutting thickness	0-15mm (upon materials type)
Rotary device	φ10-150×300mm(optional)
Packing Size	*880640590mm*
Gross Weight	60kg

Applicable materials for reference:

Material	Engraving	Cutting	Material	Engraving	Cutting
Natural wood	√	√	Paper	√	√
Acrylic	√	√	Mylar	√	√
Glass	√	X	Pressboard	√	√
Double color plate	√	√	Rubber	√	√
Bamboo	√	X	Plywood	√	√
MDF	√	√	Fiberglass	√	√
Cloth	√	√	Painted metals	√	√
Leather	√	√	Plastic	√	√
Marble	√	X	Ceramic	√	X
Matte boards	√	√	Coated metals	√	X
Stone	√	X	Other materials	√	√
