Perfect Laser Economic Animals Pig Cattle Sheep Ear Tags Livestock Dog Tag Laser Marking Machine
(Model: PEDB-420)
The materials and content of dog tag marking laser machine are very suitable for laser technology to marking.The marking logo and material integration is not easily forged, and the marking process of laser marking machine ear tags is very fast and very economical.
This kind of laser marking machine ear tags livestock is a high-efficiency laser coder specially developed and manufactured by Perfect Laser for animal earmarking market. The ear tag marker adopts imported German high-quality laser source, the beam quality is excellent and the marking lines of this ear tag marker are smooth and fine. At the same time we equipped with the Perfect Laser special coding software and professional customized working platform to automatically arrange serial number, input multi-character and two-dimensional code to fast and accurate realizing various marking on livestock ear tag and labeling surface.


This animal ear tag laser marking machine is mainly applied in the identification of numbers or two-dimensional codes on animal ear tags (pigs, cattle, sheep) for the information management of animals and live stocks for animal breeding, epidemic prevention and meat quarantine.

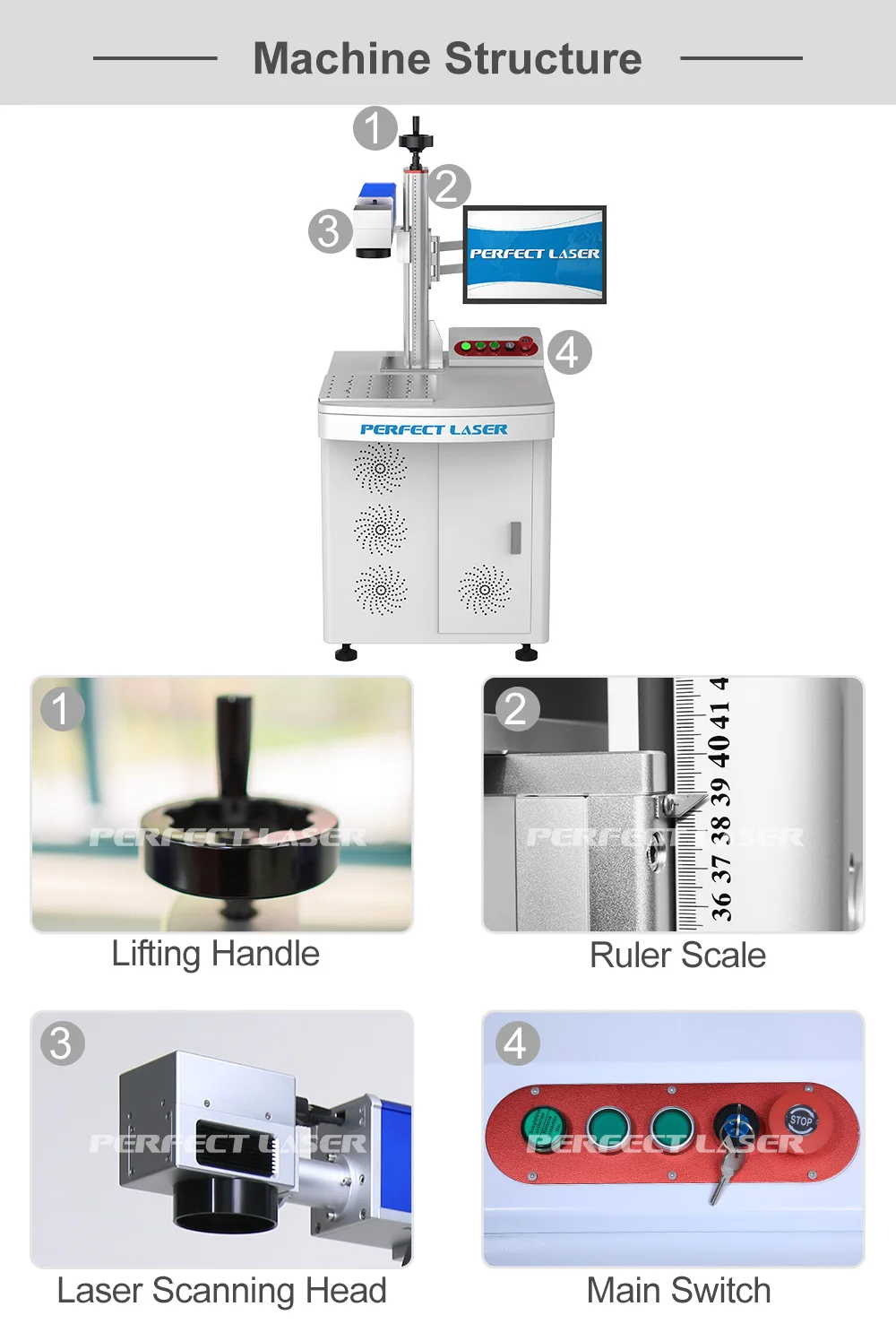

1. The animal ear tag laser marking machine adopts integrated design, equipped with electric multi-station rotating platform (the platform shape can be customized for your own ear tag parts), easy operation and environmental protection.
2. The ear tag engraver adopts imported Germany laser source with high-quality beam mode and optical frequency control, the marking accuracy of the ear tag engraver is very high and the marking effect is excellent and clear, animal ear tags can be achieved permanent and anti-counterfeit mark by this ear tag engraver.
3. Meet the coding equipment technical requirements of Agriculture Ministry livestock ear tags production systems technical specifications, and the ear tag marker can be marked on the surface of a variety of livestock earmark logo and two-dimensional code and other information.
4. The cattle ear tag printing machines adopt professional custom work platform, and equipped with Perfect laser special coding software, the processing time of work pieces by this cattle ear tag printing machines is shorter and more efficient.
5. The marking speed of the ear tag engraver is fast and only once is OK, no consumables and the whole energy consumption of the cattle ear tag printing machines is low, with long service life and low cost.
Model No
|
PEDB-420 Animal Ear Tag Laser Marking Machine
|
Type
|
Standby
|
Computer
|
Includes PC
|
IPG Series
|
Pulsed, High Energy Ytterbium Fiber Lasers
|
Mode of operation
|
Pulsed
|
Polarization
|
random
|
Power
|
20W 30W 50W
|
Central emission wavelength
|
1060-1070 nm ,Q-switched operation Output power adjustment range 10%-100%
|
Emission Bandwidth (FWHM)
|
<10 nm
|
Long-term average power instability
|
<5%
|
Pulse width, (FWHM)
|
100 ns
|
Laser switching ON time
|
180 μsec
|
Laser switching OFF time
|
180 μsec
|
Operating voltage
|
220V
|
Net Dimensions
|
143*62*101cm
|
Net Weight
|
130 kgs
|
Gross Weight
|
200 kgs
|
Scanning Speed
|
0-7000mm/s
|
Marking Speed
|
0-5000mm/s
|
Marking size
|
110mm×110mm (F-theta 160)
|
