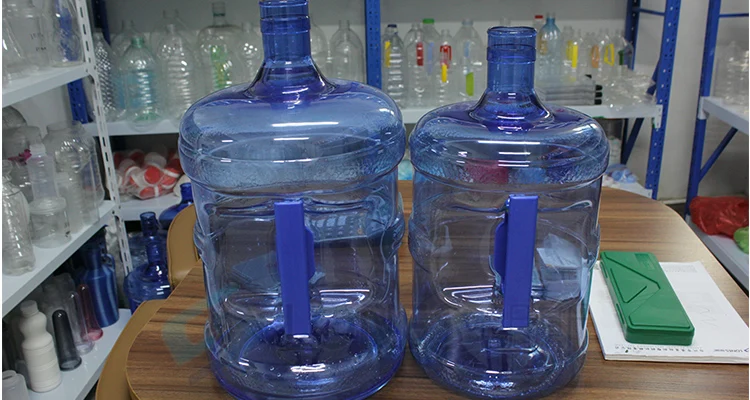

PET 3 5 gallon bottle blow molding machine 5L to 22L disposable cycle barrel
- SKU:
- 206568832011181
- Shipping:
- $564.19 (Fixed Shipping Cost)
Description
LONES MACHINERY was established in 2014. It is a professional manufacturer and exporter specializing in the design, manufacture and sales of semi automatic pet blow molding machine, full automatic pet bottle making machine and pet bottle molds; and provides PET One-stop solutions for a series of products such as PET preform moulds and plastic cap molds; in order to meet the needs of customers in different countries and regions, we continue to update processing equipment, improve processing accuracy and optimize machine design; the factory runs synchronously with production and management, greatly Improves the timeliness of manufacturing equipment;all our equipment meets international quality standards and is greatly appreciated all over the world.
|

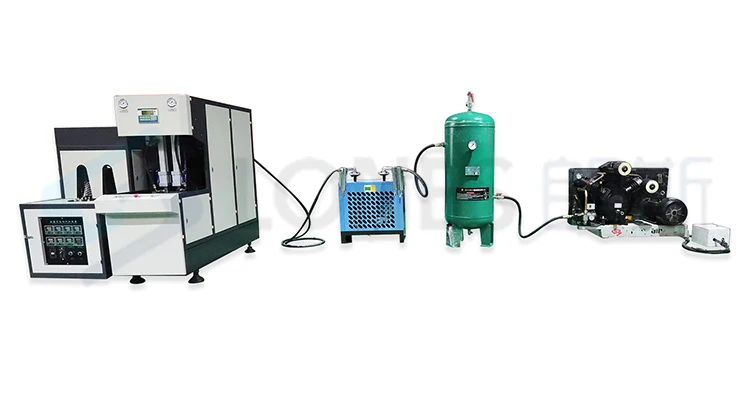

LS-B20L SEMI AUTOMATIC pet bottle BLOWING MACHINE
|
||||||
|
THEORETICAL OUTPUT
|
120BPH for 20L bottle
|
|||||
|
HEATING CAPACITY
|
18KW
|
|||||
|
MAX BOTTLE VOLUME
|
22L 1-CAVITY
|
|||||
|
BLOWING PRESSURE
|
≦3.5MPA
|
|||||
|
MOTION PRESSURE
|
≦1.0MPA
|
|||||
|
MAX D*H
|
Φ330*H600 mm
|
|||||
|
MOULD THINKNESS
|
300-450MM
|
|||||
Main Features
2.Adopting double crank mold locking structure with high -hardness cast iron,the clamping force is large and durable

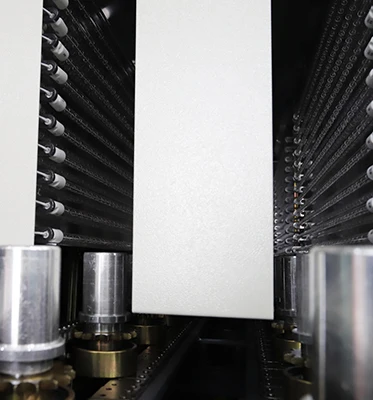

Infrared rotary oven to heat the preform ,independent temperature control and adjustable lamp for heating evenly and efficiently
3.Small size, low energy consumption and modular design makes maintenance and mold replacement easy

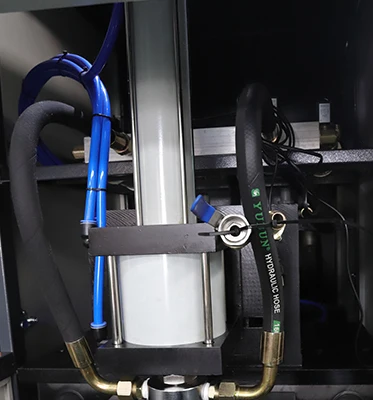

4.The air circuit is divided into two parts: action and blowing, which can provide stable high pressure blowing of large volume and thick-walled bottles
5.Suitable for blowing various shapes of water bottles, wide-mouth bottles, PMMA lamps, oil bottles and large volume thick walled bottles etc
