Small Automatic Honey Sachet Stick Processing And Packing Machine

(No reviews yet) Write a Review
SKU:
205763442011181
Shipping:
$380.42 (Fixed Shipping Cost)
  • Small Automatic Honey Sachet Stick Processing And Packing Machine
  • Small Automatic Honey Sachet Stick Processing And Packing Machine
  • Small Automatic Honey Sachet Stick Processing And Packing Machine
  • Small Automatic Honey Sachet Stick Processing And Packing Machine
  • Small Automatic Honey Sachet Stick Processing And Packing Machine
  • Small Automatic Honey Sachet Stick Processing And Packing Machine
$16,638.99

Description



HOT SALE Products
Liquid & Paste Packaging Machine
Products Description

Small Automatic Honey Sachet Stick Processing And Packing Machine



1.The contact part with the packaging material is 304 stainless steel, and the whole body can also be made of 304 stainless steel
according to customer requirements. Strictly made as per CE and SGS certification demands
2.All machines are equipped with a protective cover to avoid unnecessary damage during use. Compliance with EU safety
certification requirements
3.Optional English or other languages screen display, easy and simple operation.
4.High-sensitivity photoelectric color tracing and digital input of cutting position get more accuracy.
5.The machine integrate Bag-making, filling, sealing, cutting, counting can be achieved automatically and straightly.
6.Bag length and packing speed is adjustable on the Touch screen, The bag width is adjustable by changing bag mold .
Model
GD-220J
GD-320J
GD-420J
Measuring
Piston Pump

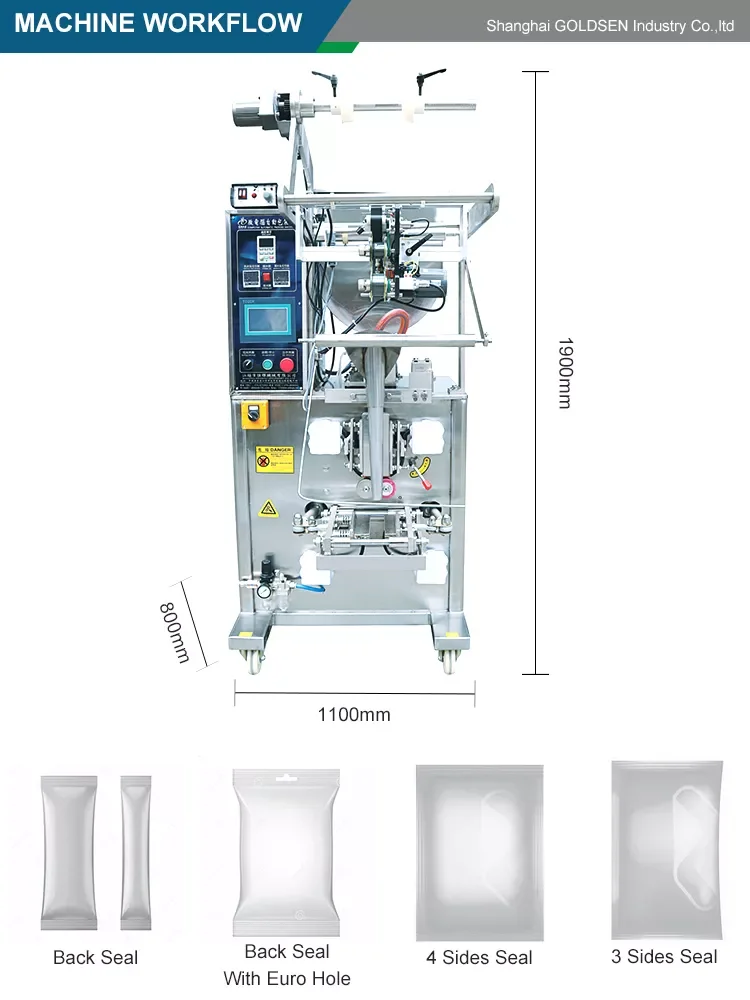

Bag Shape
Back Sealing/3 Sides Sealing / 4 Sides Sealing


Packing Speed
30-100bags/min
30-80basg/min
10-60bags/min
Max Roll Film Width
220mm
320mm
420mm
Bag Length
30-150mm
40-200mm
60-300mm
Bag Width
15-100mm
30-150mm
60-200mm
Machine Dimension(L*W*H)
1100*800*1900
1150*850*1950mm
1180*980*2150mm
Weight
300KG
350KG
400KG
Power
220V,50/60HZ,1.2KVA
220V,50/60HZ,1.5KVA
220V,50/60HZ,2KVA

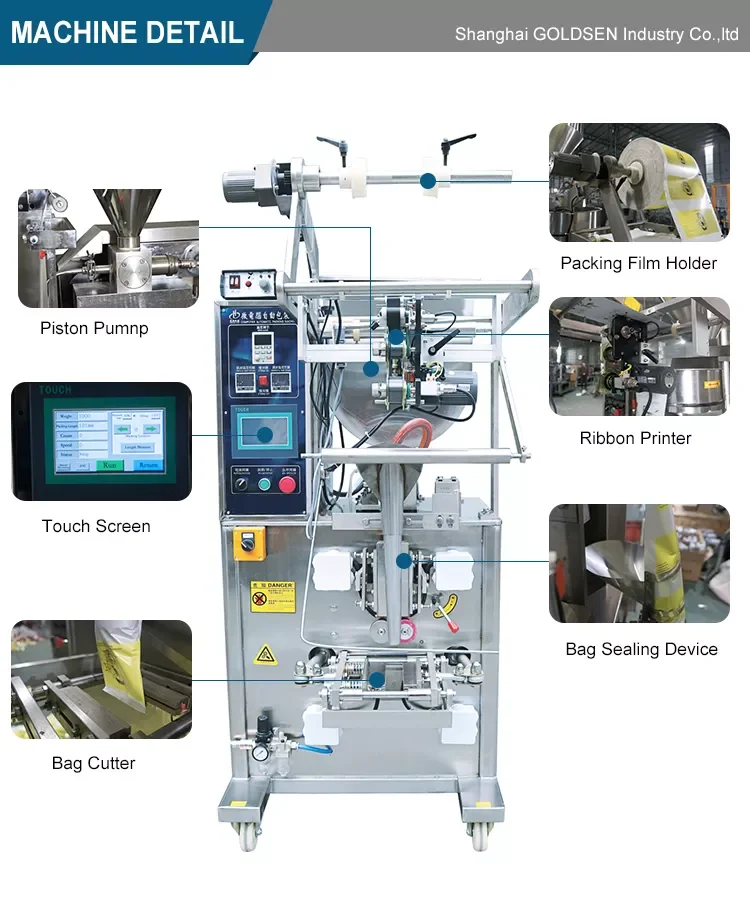

Details Parts of The Main Machine




Easy Control Touch Screen:
Language: Standard English . Any language can be customized.
PLC: Imported PLC microcomputer with touch screen interface ļ¼Œenables bag parameter setting much more convenient and faster





Film Roller :
The film can be replaced easily on the film roller.
Various films adaptable: OPP/CPP,OPP/BOPP,MST/PE/PET/PE. ALU-FOIL,



Liquid Piston Pump:
The filling weight is adjusted,the contact parts of the machine is #304 stainless steelmaterial .It is safe and meets with the GMP standard. According to the viscosity of the filled liquid, you can choose to replace the mechanical pump.






Bag Former (Moldļ¼‰:
#304 stainless steel bag former is for shaping the film into a bag. Different bag width need to change different bag former.






Durable Sealing Cutting Blades:
High speed of fine and clean cutting and sealing bags. Positioned stop function avoid sticking blades and wasting packing materials.
OPTIONAL DEVICE
Application
Goldsen Liquid Paste Packaging Machine Is Suitable For Ketchup, Tomato Paste. Cherry Past , Chocolate Paste, Sauce,Chili Sause, Honey, Peanut Butter, Mayonnaise, Olive Oil, Soup , Shampoo , Hand washing Fluid , Liquid Detergent ,Etc.According To Customer Needs,The Bag Types Can Be Changed:Back Side Seal,Three Sides Seal ,Four Side Seal .Specical Bag Seal As Per Requested.
