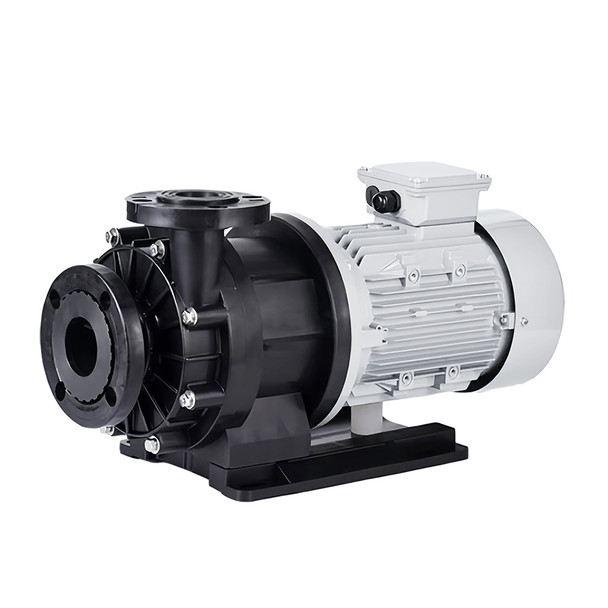

1.5 kW Polypropylene Magnetic Drive Chemical Pump 240V
- SKU:
- MTR-B06-PMP-MAG15
- Shipping:
- Free Shipping
Description
Sealless polypropylene magnetic-drive chemical pump
A magnetically coupled centrifugal pump designed to remove the dynamic shaft seal and reduce external leakage risk in compatible chemical-transfer systems.
Key specifications
| Motor | 1.5 kW, 230–240V 50Hz configuration specified |
|---|---|
| Pump body | GFRPP/polypropylene; PVDF option not included |
| Drive | Sealless magnetic coupling |
| Flow reference | Up to approximately 18 m³/h for selected series |
| Head reference | Up to approximately 15 m |
| Speed | Approximately 2900 rpm |
| Elastomers | EPDM/Viton option must be selected |
| Connections | Flanged ports; size and standard confirmed before dispatch |
Recommended applications
- Water-treatment chemical circulation
- Plating and surface-treatment lines
- Acid/alkali transfer where compatible
- Scrubber and dosing-system circulation
Selection and safety
Chemical service requires written compatibility confirmation using the exact concentration and temperature. Dry running, crystallising fluids and solids may damage the pump. Electrical and hazardous-area requirements must be assessed; standard configuration is not explosion protected.
Australian supply and compliance
The exact model, duty point, voltage, connection, materials, seals and documentation are confirmed before dispatch.
Quality assurance
Supply is subject to supplier identity and model verification, pre-dispatch inspection evidence, available performance/test records, operating instructions and written warranty terms. Certification claims apply only where supported for the actual unit supplied.
Information required
- Liquid, viscosity, temperature and solids content
- Required flow, total dynamic head and suction conditions
- Power supply, duty cycle and installation environment
- Pipe connections, and required date
