3S Heracles Rack-and-Pinion Wind Turbine Service Lift

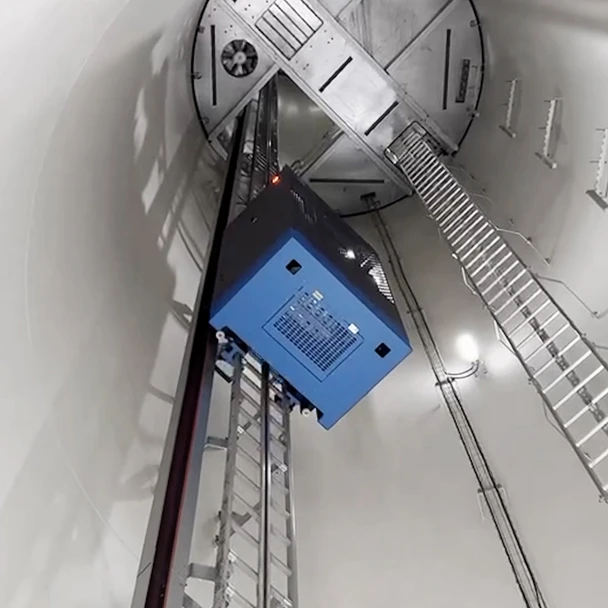

The 3S Heracles service lift provides enclosed access inside wind turbine towers. A rack-and-pinion drive and dual lifting systems support personnel access during construction, commissioning and ongoing maintenance. H240, H350 and H480 configurations are grouped here for project selection.

Enquire about Heracles H240 / H350 / H480

Technical specifications and selection

Manufacturer	3S Industry
Drive arrangement	Rack and pinion; dual drive systems
H240 rating	240 kg; up to 2 persons
H350 rating	350 kg; up to 3 persons
H480 rating	480 kg; up to 4 persons
Travel speed options	18 or 24 m/min
H240 dimensions	1,030 × 860 × 2,700 mm
H350 / H480 dimensions	1,200 × 860 × 2,820 mm
Electrical supply	400 V or 690 V; 50/60 Hz; 3P+PE
Operating temperature	-30 to +60°C; low-temperature version by selection
Protection functions	Overspeed fall protection, overload protection and escape provisions
Optional power arrangement	Insulated conductor rail supply

Application and selection

For Australian tower projects, confirm the ladder and support structure, platform openings, required travel height and total passenger-and-tool load. The stated passenger count does not permit the rated load to be exceeded.

Quotation information

Provide tower drawings, hub height, turbine model, electrical supply and installation scope. Installation engineering, rescue arrangements, inspection requirements and applicable Australian approvals must be resolved for the proposed site.

Supply availability, final configuration and warranty terms are confirmed in the written quotation.
