JSR24 24-Inch CNC Lathe Soft Jaws, 3-Piece Steel Set
- SKU:
- MTR-B09-047
- Availability:
- Minimum order: 1 set. Price covers the complete lot.
- Minimum Purchase:
- 1 unit
- Shipping:
- $49.50 (Fixed Shipping Cost)
- MATRICO Reference:
- MTR-B09-047
- Model / Family:
- JSR24
- Listed Sales Unit:
- One 3-piece set
- Primary Construction:
- Industrial steel construction with the listed finish
- Nominal Size / Range:
- Refer to the listed configuration and approved order specification
- Configuration Type:
- Single defined configuration
- Business Use:
- Commercial / industrial procurement
Description
Minimum order included in this price
The displayed price covers the complete supplier minimum order of 1 set. It is not a single-unit price.
Unit specifications, drawings and any selected option apply across this minimum-order lot unless the written order specification states otherwise.
Order specification
Priced sales unit: the complete minimum-order lot of 1 set. The technical details below define the selected per-unit product family or project configuration. Final drawings, dimensions and interfaces are agreed before production where applicable.

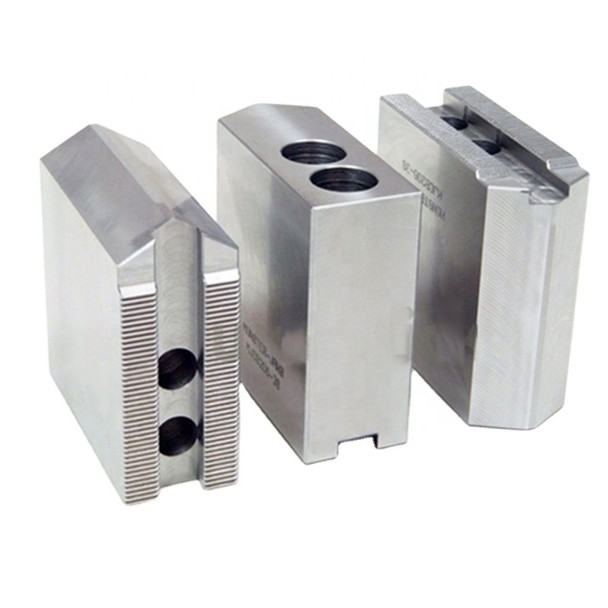

Machinable soft jaw sets configured for the chuck interface and component gripping layout.
Features and applications
- Machinable jaws allow a workpiece-specific gripping profile.
- A three-piece set supports a compatible three-jaw chuck.
- Repeat bored-jaw setups can support production workholding.
Compatible CNC lathe chucks and machining production.
Technical details and configuration options
| Model | JSR24 |
|---|---|
| Set quantity | Three jaws |
| Material | 45# steel |
| Chuck-size reference | 24inch |
| Use | Machinable soft-jaw workholding |
| Mounting interface | Chuck-specific serration and bolt pattern |
| packed mass | 16kg |
| Supply scope | Jaw set only; chuck excluded |
Selection and installation
Confirm serration pitch, groove width, bolt centres and jaw dimensions against the actual chuck.24inch is not a universal compatibility specification. The current supplier requires further performance validation.
MATRICO product support
For compatibility, order and after-sales enquiries, contact MATRICO and quote MTR-B09-047. Include your application, required quantity and Australian delivery postcode.
