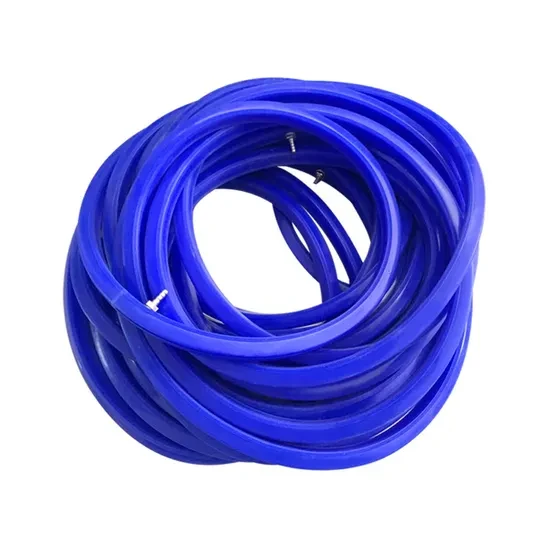

Custom Inflatable Silicone Seals for Hatches, Valves & Process Equipment — MOQ Lot of 10 custom seals
- SKU:
- MTR-B09-019
- Availability:
- Minimum order: 10 custom seals. Price covers the complete lot.
- Minimum Purchase:
- 1 unit
- Shipping:
- $30.00 (Fixed Shipping Cost)
- MATRICO Reference:
- MTR-B09-019
- Model / Family:
- MTR-B09-019
- Listed Sales Unit:
- One listed sales unit
- Primary Construction:
- Industrial silicone compound matched to the stated application
- Nominal Size / Range:
- 500 x 300 mm; 20 x 15 mm
- Configuration Type:
- Single defined configuration
- Business Use:
- Commercial / industrial procurement
Description
Minimum order included in this price
The displayed price covers the complete supplier minimum order of 10 custom seals. It is not a single-unit price.
Unit specifications, drawings and any selected option apply across this minimum-order lot unless the written order specification states otherwise.
Order specification
Priced sales unit: the complete minimum-order lot of 10 custom seals. The technical details below define the selected per-unit product family or project configuration. Final drawings, dimensions and interfaces are agreed before production where applicable.
Inflatable sealing profiles for equipment builders and maintenance teams replacing application-specific seals.
Features and applications
- Inflation can bring the seal into contact with a mating surface.
- Custom geometry accommodates equipment openings.
- Compound selection can follow the operating environment.
Industrial hatches, process closures, valves and machinery interfaces.
Technical details and configuration options
| Seal type | Hollow inflatable seal |
|---|---|
| Material options | Silicone, EPDM or NBR |
| Geometry options | Round, rectangular and other custom profiles |
| Inflation connection | Nozzle arrangement to suit the design |
| Seal dimensions | Drawing-specific |
| Expansion direction | Application-specific |
| Supply scope | Complete loop or extrusion must be defined |
| Not included | Air controls and installation hardware unless specified |
Selection and installation
Provide section drawing, perimeter, gap, mating surface, medium, pressure, temperature and cycle frequency. Establish inflation and retention details before approving manufacture.
MATRICO product support
For compatibility, order and after-sales enquiries, contact MATRICO and quote MTR-B09-019. Include your application, required quantity and Australian delivery postcode.
