Horizontal Toggle Clamp - 203F Reference

(No reviews yet) Write a Review
SKU:
MTR-BN-261006-TC-01

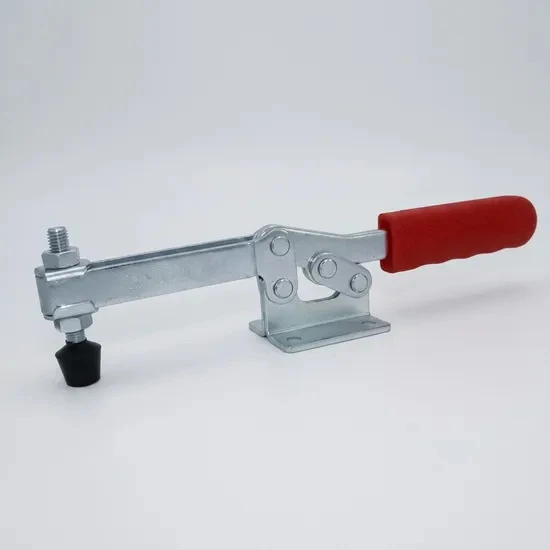

  • Horizontal Toggle Clamp - 203F Reference - closed clamp, angled view
  • Horizontal Toggle Clamp - 203F Reference - handle raised
  • Horizontal Toggle Clamp - 203F Reference - opposite-side view
Request a Quote

Description

Manual horizontal toggle clamp for repetitive jig and fixture work using the 203F reference. An adjustable spindle and rubber contact tip allow the contact position to be matched to the workpiece.

Configuration for quotation

Enquiry reference203F; confirm the dimensional drawing for this configuration
MechanismHorizontal handle, flanged mounting base and adjustable contact spindle
Contact arrangementThreaded spindle with rubber tip and adjusting nuts; final thread, reach and travel confirmed
ConstructionMetal clamp assembly with red handle grip; material and surface finish specified in the quotation
Fixture selectionMatch mounting-hole pattern, arm reach, opening clearance, workpiece height and required holding force
Supply unitOne manual clamp; fixture plate and mounting fasteners included only when quoted

Typical enquiry applications

Jig makers, assembly workshops, cabinet and furniture manufacturers, and fabrication businesses requiring repeatable manual workholding.

What to send with your enquiry

  • Fixture drawing, mounting-hole pattern, reach, workpiece height and clearance.
  • Required holding force and direction, operating frequency and contact-tip requirements.
  • Quantity, sample / inspection requirements and Australian delivery postcode.

Order confirmation

Final specification, price, freight to your Australian postcode, availability, lead time, inspection documents and warranty / remedy terms are confirmed in the written quotation before order.

Three original photographs show this selected clamp configuration in different views or positions. The model reference is not a claim of interchangeability with any other brand. No verified holding-force rating is published; obtain the exact drawing and test basis before fixture approval. Not a lifting or personnel-safety device.
