Huawu YZFC18-04 Wind Turbine Hydraulic Power Unit
(No reviews yet)
Write a Review
- SKU:
- MTR-WE-037
- MPN:
- YZFC18-04
- Shipping:
- Free Shipping
Description

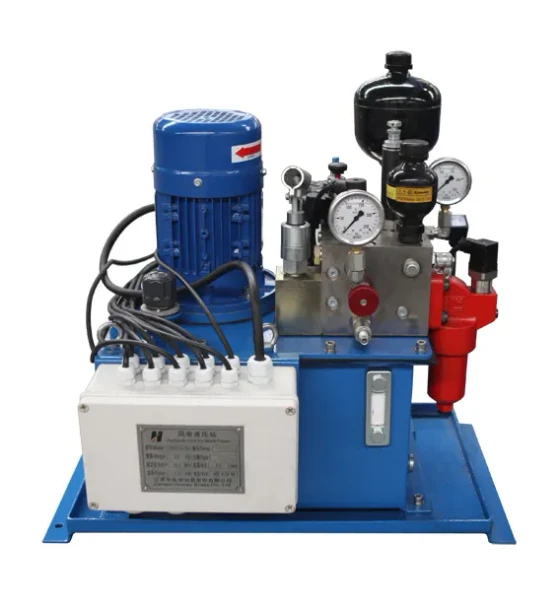

Huawu YZFC18-04 Wind Turbine Hydraulic Power Unit
The Huawu YZFC18-04 hydraulic power unit controls rotor brakes and hydraulic lockpins on wind turbines. The reference configuration combines a reservoir, hydraulic control assembly and a maintenance hand pump.
Technical specifications and selection
| Manufacturer | Jiangxi Huawu Brake Co., Ltd. |
|---|---|
| Reference model | YZFC18-04 |
| Controlled functions | Rotor brakes and hydraulic lockpins |
| Published reference working pressure | 180 bar |
| Published reference flow | 4 L/min |
| Reservoir capacity | 20 L |
| Published motor supply options | 380 V AC or 690 V AC, 50 Hz; select for the actual site supply |
| Published control supply options | 220 V AC, 50 Hz or 24 V DC |
| Published reference mass | 115 kg |
| Published ambient range | -40 to +70 °C; select fluid and auxiliaries for duty |
| Maintenance provision | Hand pump for power-off maintenance |
| Optional equipment | Level and temperature detection, heating and oil collection |
Application and selection
For complete hydraulic-package enquiries and replacement of ageing brake-control equipment. Select a circuit against the turbine hydraulic schematic and operating sequence.
Quotation information
Send the hydraulic drawing, required pressure and flow, electrical supply, accumulator requirements, ambient conditions and quantity. Define whether controls, sensors and installation accessories are included.
Supply availability, final configuration and warranty terms are confirmed in the written quotation.
