L100 Jaw Shaft Coupling - Complete Assembly with NBR Spider
(No reviews yet)
Write a Review
- SKU:
- MTR-BN-261002B-JC-02
Description
A complete L100 jaw-coupling configuration for matching a motor, pump or machinery drive. The enquiry covers two hubs and one NBR elastomer spider; both shaft connections and the duty must be selected together.
Configuration for quotation
| Requested coupling size | L100 L-series size designation |
|---|---|
| Requested assembly | Two matching hubs and one NBR elastomer spider |
| Hub material | Steel or cast iron selected and documented in the quotation |
| Bores and keyways | Pilot or finished bores; specify both shaft diameters, keyways and fits |
| Spider selection | NBR grade / hardness, geometry and operating limits to be confirmed |
| Performance selection | Torque, peak load, speed, service factor and alignment limits confirmed before order |
| Quoted unit | One selected complete assembly; bore machining scope confirmed in quote |
Typical enquiry applications
Pump and motor repair businesses, power-transmission suppliers and factory maintenance teams.
What to send with your enquiry
- Driving and driven shafts: Both shaft diameters, keyways and required fits.
- Assembly space: L100 requested; send old part photos and dimensions.
- Drive duty: Motor power, speed, torque, starts and shock loads.
- Element and environment: NBR requirement, temperature, fluids and guarding.
- Order details: Quantity, machining scope and Australian postcode.
Order confirmation
Price, availability, final specification, inspection documents, lead time and warranty / remedy terms are confirmed in the written quotation before order.

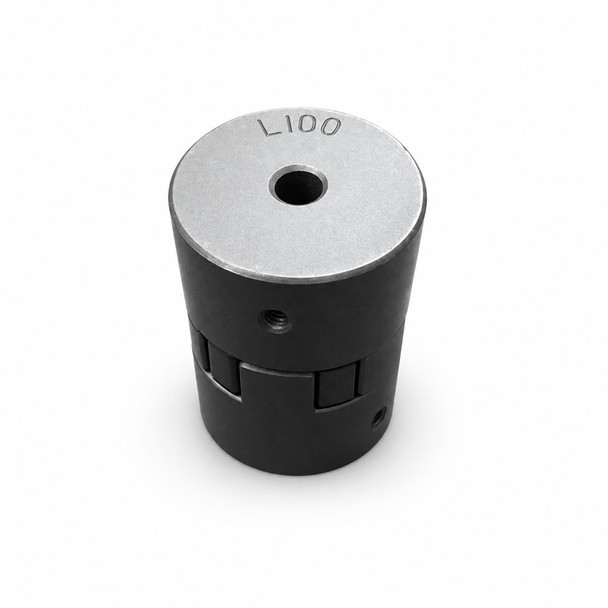

The photograph shows the L100 size marking on an assembled coupling. Final hub bores, keyways, material and NBR element specification are confirmed in the approved quotation and drawing. No cross-brand interchangeability is implied.
