Luneta
Luneta CMP Condition Monitoring Pod and Oil Sampling Port
- SKU:
- MTR-WE-078
Description
Luneta CMP Condition Monitoring Pod and Oil Sampling Port
The Luneta CMP combines an oil sight glass, condition indicators and a sampling connection in one inspection point. It lets maintenance teams observe oil level and visible changes without opening the machine housing.
Technical specifications
| Product family | Condition Monitoring Pod (CMP) |
|---|---|
| Installation point | Centreline oil-level port on a suitable stationary machine |
| Pressure application | Low-pressure applications only; not for pressurised systems |
| Recommended temperature | −40°C to 93°C |
| Thread selection | NPT, BSPP, metric and limited BSPT options; exact size to be confirmed |
| Visual inspection | Oil level, colour, clarity, aeration, foam and visible debris |
| Monitoring components | Magnetic wear-debris indicator and steel corrosion indicator |
| Sampling | Built-in sampling valve and pilot tube |
| Listed components | Pod assembly, thread reducer, magnetic indicator, corrosion indicator, manual and two Viton gaskets |
Application and selection
A visual inspection and sampling point for suitable gearbox housings and oil reservoirs. Assess the port location, lubricant compatibility, vibration and operating conditions before selection. Install at the normal oil level, not below it. Do not use on pressurised systems, moving machine surfaces or equipment exposed to shock or fluid surges.
Quotation information
Provide the machine model, oil type, normal temperature, port thread and dimensions, installation photographs, quantity and delivery postcode. Confirm the exact adapter and material compatibility. Any separate oil sampling kit must be specified in the quotation.

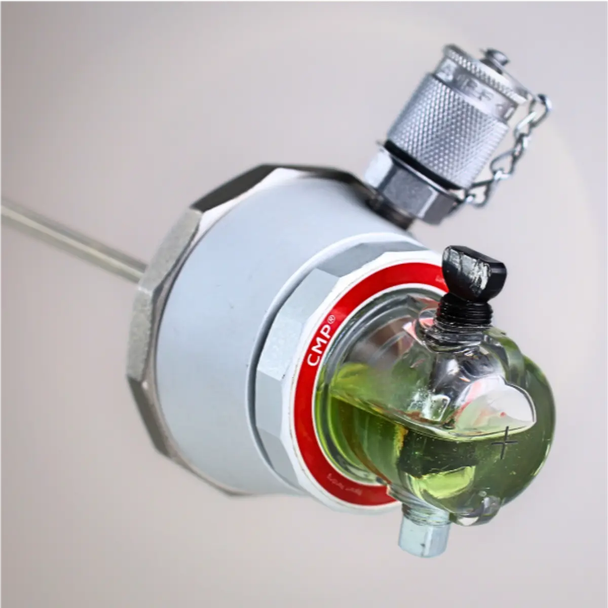

Image shows a CMP configuration; port adapter and configuration are selected for the application. Supply availability, final configuration and warranty terms are confirmed in the written quotation.
