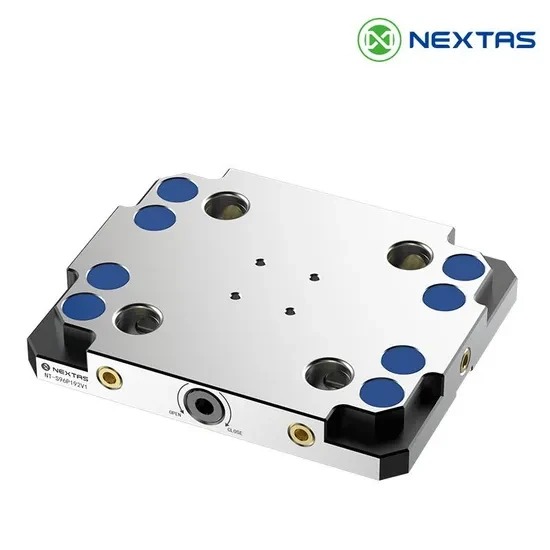

NT-S96P192V1 Manual Zero-Point Clamping Pallet, 156 ×192 mm
- SKU:
- MTR-B09-046
- Availability:
- Minimum order: 1 piece. Price covers the complete lot.
- Minimum Purchase:
- 1 unit
- Shipping:
- $50.00 (Fixed Shipping Cost)
- MATRICO Reference:
- MTR-B09-046
- Model / Family:
- NT-S96P192V1
- Listed Sales Unit:
- One listed sales unit
- Primary Construction:
- Material and finish as stated in the listed configuration
- Nominal Size / Range:
- 156 x 192 x 27 mm
- Configuration Type:
- Single defined configuration
- Business Use:
- Commercial / industrial procurement
Description
Minimum order included in this price
The displayed price covers the complete supplier minimum order of 1 piece. It is not a single-unit price.
Unit specifications, drawings and any selected option apply across this minimum-order lot unless the written order specification states otherwise.
Order specification
Priced sales unit: the complete minimum-order lot of 1 piece. The technical details below define the selected per-unit product family or project configuration. Final drawings, dimensions and interfaces are agreed before production where applicable.
Manual positioning pallets for machine shops planning repeatable fixture changeovers.
Features and applications
- A defined pallet interface supports repeat fixture placement.
- Manual actuation avoids an external pneumatic circuit for this model.
- A compact plate footprint can suit a compatible machining setup.
CNC machining fixtures and compatible workholding systems.
Product specifications
| Model | NT-S96P192V1 |
|---|---|
| Body dimensions | 156 ×192 ×27mm |
| Material | Stainless steel |
| Actuation | Manual |
| Interface family | 96mm zero-point spacing |
| packed mass | 6kg |
| pack size | 300 ×300 ×150mm |
| Supply scope | One clamping pallet; vice and machine excluded |
Selection and installation
Verify pull-stud geometry, fastening and the receiving fixture against the manufacturer drawing.96mm spacing alone does not guarantee cross-brand compatibility. Use model-specific operating instructions and clamp-force limits.
MATRICO product support
For compatibility, order and after-sales enquiries, contact MATRICO and quote MTR-B09-046. Include your application, required quantity and Australian delivery postcode.
