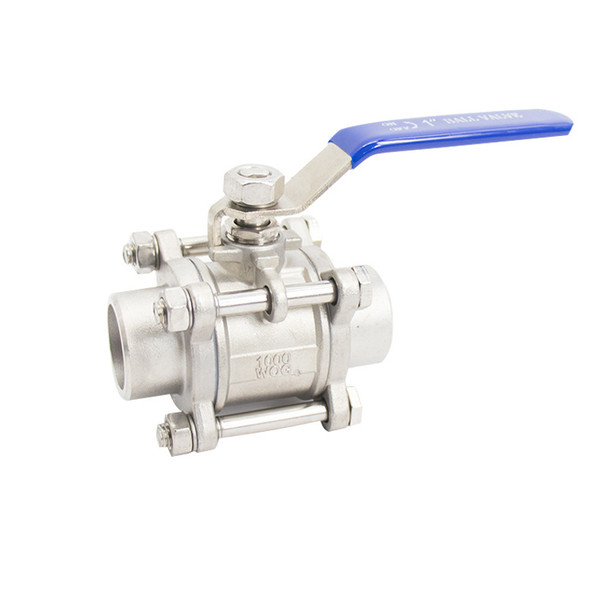

SS316 3-Piece Full-Port Ball Valve 1 in BSP 1000 WOG
- SKU:
- MTR-B05-VAL-BV1SS316
- Minimum Purchase:
- 1 unit
- Shipping:
- Free Shipping
Description
Industrial 1-inch SS316 three-piece ball valve
A compact, serviceable full-port isolation valve for workshops, process skids, water treatment and general industrial pipework. The three-piece body allows easier maintenance than a one-piece economy valve while the stainless construction supports demanding non-corrosive and compatible-media duties.
Key specifications
| Specified configuration | 1 inch female BSP x female BSP |
|---|---|
| Body construction | Three-piece stainless steel; SS316/CF8M grade to be verified |
| Port | Full port |
| Pressure reference | 1000 WOG manufacturer rating; application derating applies |
| Seat and seals | PTFE seat set; exact seal grade to be confirmed |
| Operation | Lockable manual lever, quarter turn |
| Temperature reference | Supplier series approximately -25°C to 180°C; confirm for media and seal |
| Flow direction | Bi-directional isolation unless supplier documentation states otherwise |
Recommended applications
- Water-treatment and wash-down systems
- Compressed-air and compatible gas lines
- Light process, pump-skid and workshop isolation
- OEM machinery and maintenance replacement
Australian selection and compliance
Pressure rating is not an Australian design-registration approval. The installer must verify thread standard, material traceability, pressure-temperature curve, chemical compatibility and any site-specific WHS or pressure-equipment obligations. Potable-water, gas and regulated-service use is permitted only where the supplied unit carries the required Australian evidence and approvals.
Supply and order confirmation
Displayed price covers the specified base configuration, GST and a standard Australian delivery allowance. Remote-area, mine-site, restricted-access, urgent or special-handling delivery may require a written freight adjustment before dispatch. We confirm the selected size, end connection, media, pressure, temperature, materials and delivery postcode before release.
Quality assurance and documentation
Supply is subject to model verification, pre-dispatch visual inspection evidence, material and pressure documentation available for the supplied unit, operating instructions and written warranty terms. Any certification or performance claim must be supported by documentation for the actual unit supplied.
What to provide with your enquiry
- Pipeline size and required end connection or flange standard
- Process media, operating pressure and temperature
- Required body, trim and seal materials
- Delivery postcode, site-access constraints and required delivery date
