TECPOS TCH-2050 20 Tonne Hollow Hydraulic Cylinder, 50 mm Stroke
- SKU:
- MTR-TEC-TCH-2050
- MPN:
- TCH-2050
Description
TECPOS TCH-2050 20 Tonne Hollow Hydraulic Cylinder, 50 mm Stroke
The TECPOS TCH-2050 is a single-acting hollow-plunger hydraulic cylinder with a 27 mm centre hole. Its nominal capacity is 20 tonnes, with a 50 mm stroke for pulling, pressing and tensioning arrangements using suitable tooling.
Technical specifications
| Brand | TECPOS |
|---|---|
| Model | TCH-2050 |
| Nominal cylinder capacity | 20 tonnes |
| Stroke | 50 mm |
| Maximum working pressure | 700 bar |
| Operation | Single acting, spring return |
| Retracted height A | 162 mm |
| Extended height B | 212 mm |
| Outside diameter C | 98 mm |
| Centre-hole diameter D | 27 mm |
| Effective area | 31.67 cm² |
| Oil capacity | 158.4 cm³ |
| Collar thread E | 1 9/16–16 (catalogue notation) |
| Collar thread length F | 24 mm |
| Base to inlet port G | 20 mm |
| Catalogue coupler | TBC 381F, PT 3/8 |
| Net weight | 7.5 kg |
Applications
Pull-rod assemblies, component removal and tensioning fixtures where the rod, adapters and load path are engineered for the job.
Configuration and quotation
TCH-2050 cylinder; pull rods, adapters, pump, hose and gauge are specified separately in the quotation.
Provide the rod diameter, thread and adapter details, required load, available height and stroke. Confirm thread form and mating adapters against the approved drawing before ordering.
Send your quantity and delivery postcode to MATRICO for a quotation confirming configuration, availability and lead time.

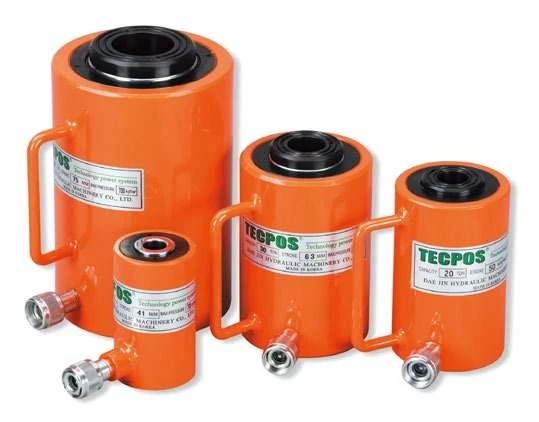

TCH series photograph and outline drawing shown. This listing is for the TCH-2050 model only.
