TECPOS TS-5010 50 Tonne Single-Acting Hydraulic Cylinder, 100 mm Stroke
- SKU:
- MTR-TEC-TS-5010
- MPN:
- TS-5010
Description
TECPOS TS-5010 50 Tonne Single-Acting Hydraulic Cylinder, 100 mm Stroke
The TECPOS TS-5010 is a 50 tonne nominal-capacity hydraulic cylinder with a 100 mm stroke. Its single-acting, spring-return design suits controlled lifting and positioning tasks with an external hydraulic pump.
Technical specifications
| Brand | TECPOS |
|---|---|
| Model | TS-5010 |
| Nominal cylinder capacity | 50 tonnes |
| Stroke | 100 mm |
| Maximum working pressure | 700 bar |
| Operation | Single acting, spring return |
| Retracted height A | 223 mm |
| Extended height B | 323 mm |
| Outside diameter C | 127 mm |
| Cylinder bore D | 95 mm |
| Piston rod diameter E | 85 mm |
| Effective area | 70.88 cm² |
| Oil capacity | 710 cm³ |
| Base to inlet port F | 55 mm |
| Piston rod internal thread G | M10 × 1.5 |
| Catalogue coupler | TBC 381F, PT 3/8 |
| Net weight | 19.5 kg |
Applications
Equipment alignment, machinery installation and workshop maintenance where the load, available clearance and support arrangement match the selected cylinder.
Configuration and quotation
TS-5010 cylinder; pump, hose, gauge and additional fittings are specified separately in the quotation.
Send the required load, lifting stroke, available closed height, quantity and existing pump and coupler details. The pump must provide sufficient usable oil volume for the selected system.
Send your quantity and delivery postcode to MATRICO for a quotation confirming configuration, availability and lead time.

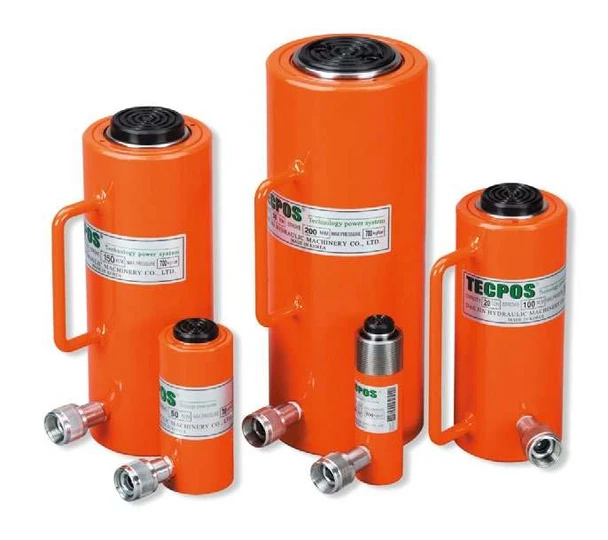

TS series photograph and outline drawing shown. This listing is for one TS-5010 configuration; use the model-specific dimensions below.
