HYTORC STEALTH Low-Clearance Hydraulic Torque Wrench
- SKU:
- MTR-WE-020
- MPN:
- STEALTH
- Shipping:
- Free Shipping
Description

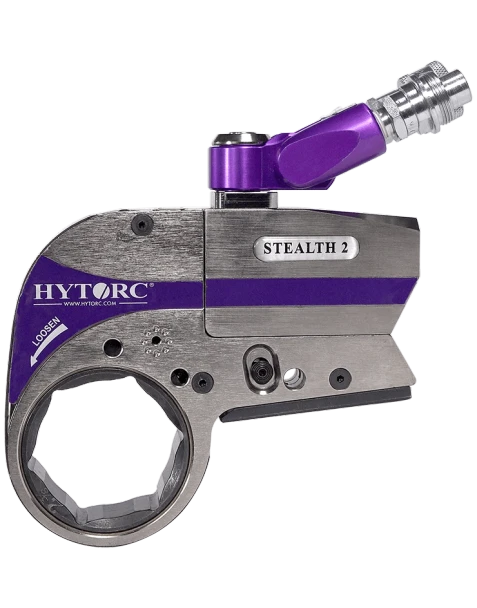

HYTORC STEALTH Low-Clearance Hydraulic Torque Wrench
HYTORC STEALTH is a hydraulic torque wrench family with interchangeable low-clearance links. It is a candidate for restricted-access bolting during wind equipment maintenance where the joint geometry and approved tightening procedure suit the selected tool.
Technical specifications
| Tool type | Low-clearance hydraulic torque wrench |
|---|---|
| STEALTH2 | 377–2,534 Nm; hex range 28–60 mm |
| STEALTH4 | 819–5,450 Nm; hex range 36–80 mm |
| STEALTH8 | 1,625–10,823 Nm; hex range 50–100 mm |
| STEALTH14 | 2,854–19,324 Nm; hex range 70–120 mm |
| STEALTH22 | 4,406–29,654 Nm; hex range 75–130 mm |
| STEALTH36 | 6,665–47,069 Nm; hex range 90–165 mm |
| Links | Interchangeable 6-point or 12-point configurations |
| Hose interface | Uni-Swivel connection for hose positioning |
| Accessories | Safety handle and tool retainer options |
| System selection | Pump, hoses, link and reaction arrangement must be matched |
Application and selection
Check nut across-flats, radial clearance, reaction location and torque requirement. Use the turbine or joint manufacturer’s bolting procedure and a suitable calibrated system.
Quotation information
Send joint drawings, bolt specification, target torque and available pump details. Family and application images may show optional accessories; the written quotation defines the supplied tool system.
Supply availability, final configuration and warranty terms are confirmed in the written quotation.
