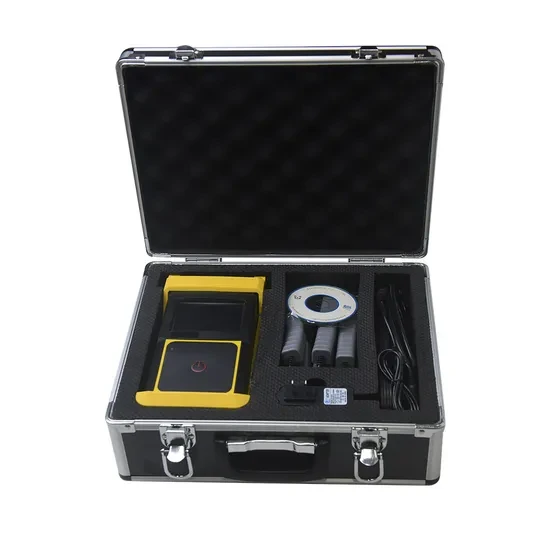

JH3000U Three-Phase Phase Voltammetry and Sequence Meter
(No reviews yet)
Write a Review
- SKU:
- MTR-MIC-154
- Shipping:
- Free Shipping
Description
JH3000U Three-Phase Phase Voltammetry and Sequence Meter is a business-grade test and maintenance product selected for Australian industrial, building-services and technical-service applications.
Key specifications
| Model | JH3000U |
|---|---|
| Voltage range | 1 to 500 V |
| Current range | 0.001 to 10 A |
| Power range | 0.001 to 5,000 W / VAR / VA |
| Frequency range | 45 to 65 Hz |
| Phase range | 0 to 360° |
| Stated phase error | ±1° |
| Display | 3.5-inch colour touchscreen |
| Battery endurance | More than 20 hours stated |
| Approx. weight | 3.3 kg |
| Listed sales unit | 1 complete meter kit |
| Minimum order | 1 listed sales unit |
Typical applications
- Three-phase commissioning and phase-sequence checks
- CT and metering circuit investigation
- Power, phase-angle and load-balance diagnostics
Selection and ordering notes
- Confirm lead set, current input method and applicable measurement category before ordering.
- The selected configuration must be suitable for the circuit voltage and installation environment.
- Qualified electrical personnel and approved safe-work procedures are required.
Product appearance and supplied accessories may vary with the confirmed configuration. Final technical requirements are checked against the approved order specification before supply.
