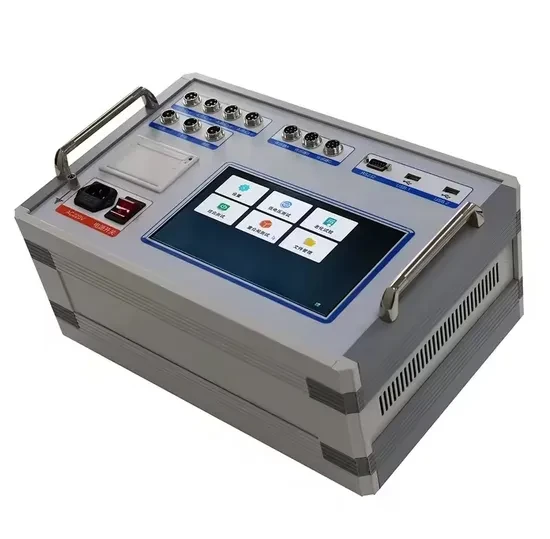

JHCY200 High-Voltage Circuit Breaker Dynamic Analyser
(No reviews yet)
Write a Review
- SKU:
- MTR-MIC-155
- Shipping:
- Free Shipping
Description
JHCY200 High-Voltage Circuit Breaker Dynamic Analyser is a business-grade test and maintenance product selected for Australian industrial, building-services and technical-service applications.
Key specifications
| Model | JHCY200 |
|---|---|
| Adjustable DC output | 6 to 270 V |
| Output time | 0.01 to 20 seconds |
| External trigger | AC/DC 10 to 300 V, up to 120 A stated |
| Coil current | Up to 20 A; 0.01 A resolution |
| Coil resistance | 0 to 2,000 Ω; 0.01 Ω resolution |
| Measured functions | Opening, closing, synchronism, different-period and bounce characteristics |
| Supply | AC 220–240 V |
| Approx. weight | 8 kg |
| Listed sales unit | 1 complete analyser kit |
| Minimum order | 1 listed sales unit |
Typical applications
- High-voltage breaker commissioning
- Maintenance timing and synchronism testing
- Operating-coil and mechanical-performance diagnostics
Selection and ordering notes
- Confirm breaker type, channel count, travel-sensor package and supported test method before ordering.
- Testing must follow the asset manufacturer’s procedure and the site high-voltage safety system.
- Use only by competent high-voltage testing personnel.
Product appearance and supplied accessories may vary with the confirmed configuration. Final technical requirements are checked against the approved order specification before supply.
Related Products
Related Products
8188-A High-Frequency Grain Moisture Meter
$1,109.00
8188-A High-Frequency Grain Moisture MeterSpecified as a fixed model for Australian commercial, agricultural, quarrying or mineral-processing buyers. This listing is supplied to order so fitment,...
Custom High-Security Container Bolt Seals – 100 Piece Lot
$129.95
Custom-numbered bolt seals for container and freight controlThis 100-piece lot provides a consistent numbered seal set for container doors and compatible cargo applications. Each seal combines an ABS...

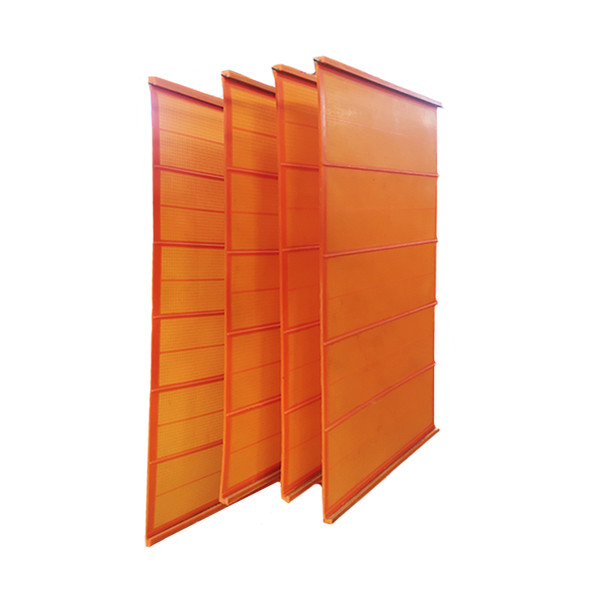

High-Frequency Polyurethane Fine Screen Panel – 1040 × 700 mm
