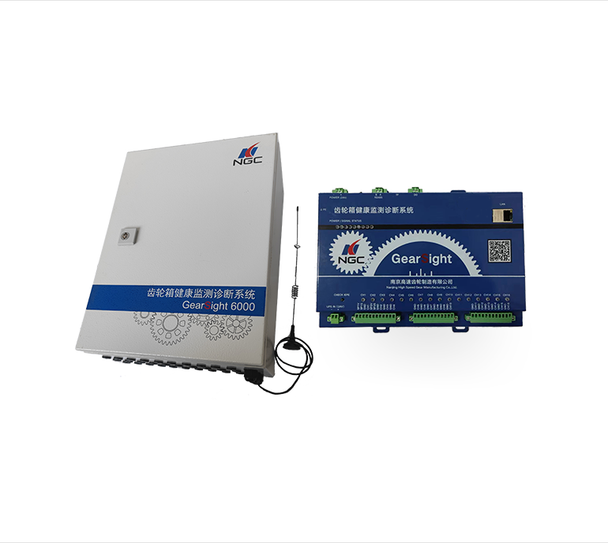

NGC GearSight6000 Wind Turbine Condition Monitoring System
NGC GearSight6000 combines vibration acquisition and operating measurements for rotating machinery condition monitoring. It supports drivetrain diagnostics and maintenance planning for wind turbine gearbox, bearing and related machinery applications.
Technical specifications
| Manufacturer / model | NGC / GearSight6000 |
|---|---|
| Vibration inputs | 16 channels |
| Speed inputs | 2 channels |
| Maximum sampling rate | 256 kHz |
| A/D resolution | 24 bit |
| Temperature inputs | 16 channels |
| Analogue inputs | 8 × 4–20 mA |
| Acquisition enclosure | IP65 |
| Sensor protection | IP68 for the specified sensor configuration |
| Storage | 4 GB eMMC and 32 GB TF storage |
| Connectivity | Ethernet, fibre, Wi-Fi or 4G according to configuration |
| System scope | Acquisition hardware, sensors and diagnostic software to the agreed package |
Application and selection
For wind-farm reliability teams seeking repeatable vibration data and diagnostic trends. Sensor positions, alarm thresholds and integration with existing maintenance systems should be defined for the installed drivetrain.
Quotation information
Provide the turbine/gearbox list, monitoring points, existing CMS or SCADA architecture, communication interfaces and data-hosting requirements. Confirm sensor quantities, software licences, commissioning, analytics and support scope.
Supply availability, final configuration and warranty terms are confirmed in the written quotation.
