SKF TKSA 41 Wireless Laser Shaft Alignment Tool
- SKU:
- MTR-WE-021
- MPN:
- TKSA 41
- Shipping:
- Free Shipping
Description
SKF TKSA 41 Wireless Laser Shaft Alignment Tool
The SKF TKSA 41 measures and guides correction of horizontal shaft alignment. Its wireless measurement heads, live adjustment display and saved reports support repeatable maintenance checks on compatible coupled machinery, including accessible wind turbine auxiliary and drivetrain arrangements.
Technical specifications
| Measurement distance | 0.07–4 m |
|---|---|
| Sensor | 29 mm CCD; inclinometer ±0.5° |
| Measuring error | 0.5% as specified by SKF |
| Display | 5.6-inch colour resistive touchscreen |
| Communication | Bluetooth 4.0 LE or USB cable |
| Shaft diameter | 20–150 mm with standard mounting |
| Optional extension | Up to 300 mm with extension chains, not included |
| Measurement modes | Three-position, automatic and free measurement |
| Free measurement rotation | 90° shaft rotation required |
| Corrections | Live vertical and horizontal values; soft-foot checks |
| Reporting | PDF reports with notes, photographs and QR identification |
| Operating temperature | 0–45°C |
| Protection | IP54 |

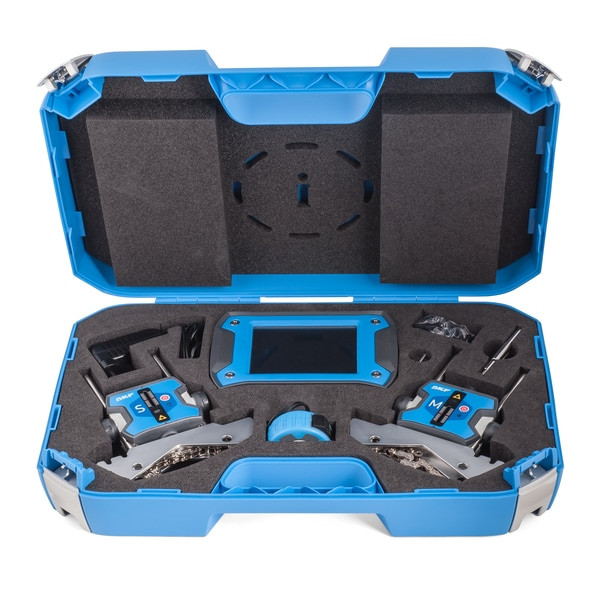

| Kit | Two measuring units, display, brackets/chains, rods, leads, power supply and carrying case |
Application and selection
Check shaft access, mounting diameter and coupling obstruction before selection. Shaft alignment is distinct from pulley or belt alignment.
Quotation information
Provide shaft diameters, coupling dimensions, available rotation and reporting requirements. Confirm standard kit versus additional chains and mounting accessories.
Supply availability, final configuration and warranty terms are confirmed in the written quotation.
