Yateks M-ADV Industrial Videoscope for Wind Turbine Inspection

(No reviews yet) Write a Review

SKU:: MTR-WE-019
UPC:
MPN:: M-ADV
Shipping:: Free Shipping

Request a Quote

Current Stock:

Description

Description

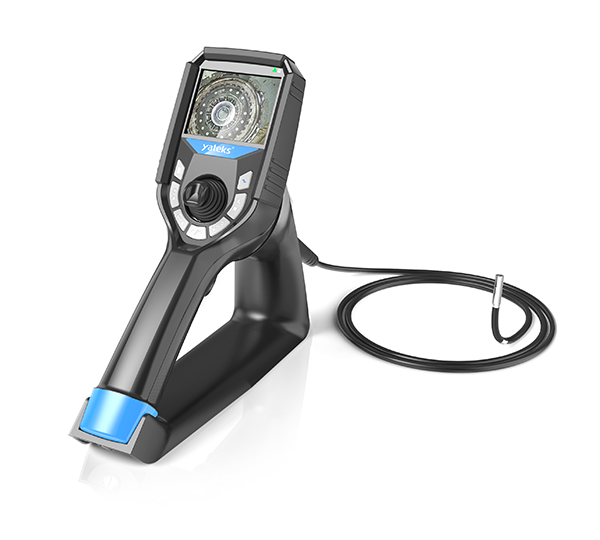

Yateks M-ADV Industrial Videoscope for Wind Turbine Inspection

The Yateks M-ADV industrial videoscope supports visual inspection through small access openings. Yateks identifies wind energy as an application, including internal inspection of gearboxes, generators and accessible blade structures.

Enquire about M-ADV

Technical specifications

Display	3.5-inch IPS LCD, 640 × 480
Steering	360° directional mechanical joystick articulation
Probe diameters	2.2, 2.8, 3.9 or 6 mm, configuration dependent
Insertion length	Options up to 8 m; confirm diameter and base-unit compatibility
Field of view	120°
Depth of field	3–50 mm or 7–80 mm according to optical configuration
Camera resolution	450,000 pixels
Digital zoom	4×
Probe construction	316 stainless steel camera head; tungsten-braided insertion tube
File formats	JPEG/JPG images; AVI video
Interfaces	SD storage, HDMI and Micro USB
Protection	Base IP54; probe IP67
Temperature	Base -10 to 50°C; probe -20 to 50°C

Application and selection

Plan access diameter, bends, working distance and viewing direction before choosing a probe. Inspection scope depends on access and turbine isolation procedures; the instrument does not make every internal surface accessible.

Quotation information

Provide component, access-hole diameter, insertion route and required recording format. Select one compatible base and probe configuration; listed probe options are not all included in one kit.

Supply availability, final configuration and warranty terms are confirmed in the written quotation.
