Moxa EDS-4008-2GT-2GS-LV-T Managed Industrial Ethernet Switch

(No reviews yet) Write a Review

SKU:: MTR-WE-086
UPC:
MPN:: EDS-4008-2GT-2GS-LV-T

Request a Project Quote

Current Stock:

Description

Description

Moxa EDS-4008-2GT-2GS-LV-T Managed Industrial Ethernet Switch

The Moxa EDS-4008-2GT-2GS-LV-T is an eight-port managed industrial Ethernet switch. It provides copper and SFP connectivity for suitably designed wind farm monitoring, control and station networks.

Request a Project Quote

Technical specifications

Manufacturer	Moxa
Model	EDS-4008-2GT-2GS-LV-T
Copper ports	4 × 10/100BaseT(X) RJ45 and 2 × 10/100/1000BaseT(X) RJ45
Fibre connections	2 × 100/1000Base SFP slots; transceiver modules selected separately
Power inputs	Redundant 12/24/48 V DC inputs; operating range 9.6–60 V DC
Power module	PWR-100-LV pre-installed
Network functions	IEEE 802.1Q VLAN, STP/RSTP, Turbo Ring v2 and Turbo Chain
Alarm and input	1 relay alarm rated 1 A at 24 V DC; 1 digital input
Enclosure	IP40 metal enclosure; DIN-rail mounting
Dimensions	55 × 140 × 122.5 mm (W × H × D)
Operating temperature	−40 to +75 °C

Application and selection

Plan port speeds and the network topology around the connected instruments and controllers. Select compatible SFP modules for fibre type, wavelength and link distance. This model does not provide PoE power; cameras or other powered devices require their own suitable supply or injector.

Information for your quotation

Provide copper and fibre port requirements, SFP specifications, network redundancy requirements, cabinet supply voltage, quantity and delivery postcode.

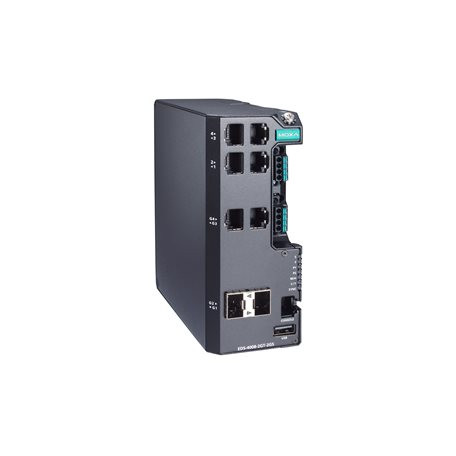

Manufacturer image shows the EDS-4008-2GT-2GS-LV-T. SFP modules and network cables are scoped separately.

Supply availability, included items, price, freight, lead time and warranty terms are confirmed in the written project quotation.
